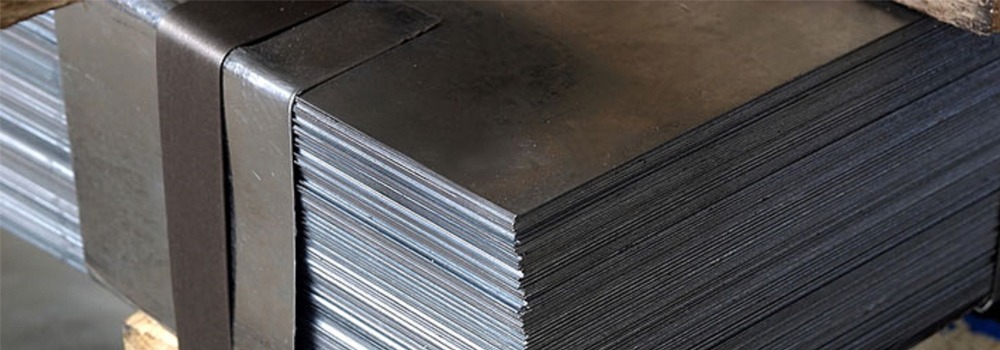

Hastelloy Plates in Qatar
As one of Qatar’s most prominent Hastelloy Plates manufacturers and suppliers, Amigo Impex takes pride in offering our clients the best quality Hastelloy Plates that will fit their needs. Our Hastelloy Plates are made from the finest Hastelloy alloys and are ideal for use in highly corrosive environments, high temperatures, and under high stress. This makes our plates suitable for chemical, aerospace and power generation industries.
Our Hastelloy Plates are manufactured to provide high performance and durability. They have improved resistance to oxidation, corrosion, and stress corrosion cracking, hence providing reliability in the harshest environment. This makes them suitable for use in parts such as reactors and heat exchangers, which are very demanding on other materials.
Hastelloy Plates In Qatar, Hastelloy Plate Suppliers
Purity is always the main focus of our company, and we ensure that the Hastelloy Plate we produce is of the best quality. We offer some quality checks: dimensional inspections, surface quality inspections and mechanical property inspections. We also employ ultrasonic and radiographic testing methods to ascertain that our plates are functional and meet the stipulated standards.
As one of Qatar’s leading Hastelloy plate suppliers, we have various sizes and grades to meet the project requirements. The inventory management and logistics guarantee the delivery and supply of our products to you at the right time and place. We promise to provide quality service to our clients, which means that our products should meet their expectations.
You get the best and most dependable products for your most challenging uses because of our commitment to quality.
Hastelloy Plates Specification in Qatar
| Standards | ASTM B575 / ASME SB575 |
| Dimensions | ASTM, ASME, and API |
| Plate Width Range | 30″ to 240″ |
| Plates Thickness | 7 gauge to 28 gauge or 3.664mm to .321mm |
| Plate Length Range | Up to144″ Non-Standard or Longer Lengths Available Upon Request |
| Value added services | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Form | Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange) |
Types of Hastelloy Plates in Qatar
Hastelloy Hot Rolled Plate in Qatar
Hastelloy Cold Rolled Plate in Qatar
Hastelloy Plain Plate in Qatar
Hastelloy Plates Equivalent Gardes in Qatar
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | NiCr21Mo14W |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | NiMo16Cr15W |
Hastelloy Plates Chemical Composition in Qatar
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| Hastelloy C22 | 0.10 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| Hastelloy C276 | 0.10 max | 0.50 max | 0.50 max | 0.15max | – | 5.0 max | 58.0 min | 20.0 – 23.0 | – | – |
Mechanical Properties of Hastelloy Plates in Qatar
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Hastelloy C276 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
Hastelloy Plates Industrial Application in Qatar
- Oil and Gas Industry
- Construction and Architecture
- Chemical and Petrochemical Industry
- Food and Beverage Industry
- Pharmaceutical Industry
- Automotive Industry
- Power Generation
- Water Treatment and Desalination
