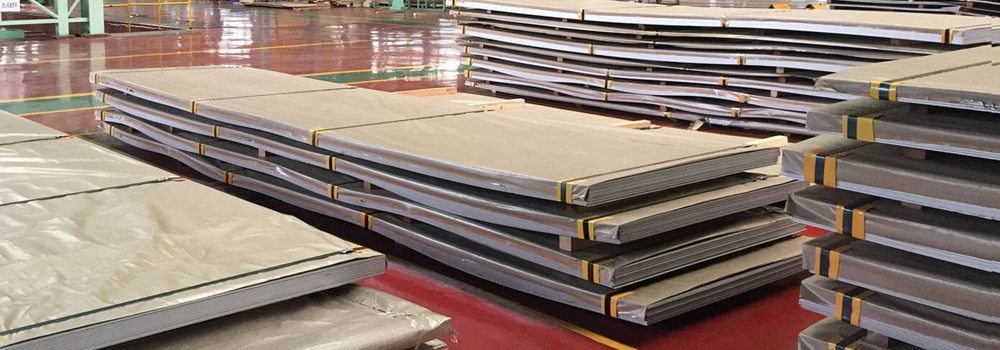

Monel Plate in Saudi Arabia
Amigo Impex is a prominent monel plate manufacturer and supplier in Saudi Arabia, and it aims to provide the finest monel plates to be used in different sectors. Our Monel plates are manufactured from a nickel-copper alloy that is very famous for its corrosion resistance, strength and durability.
Our monel plates are made to meet the rigours of the environment like the marine and chemical industries. Monel is an austenitic alloy containing about 63% nickel and 28% copper and is, therefore, very suitable for use in marine environments, such as acids and alkalis. This makes our Monel plates ideal for application in marine engineering, petrochemical, aerospace and chemical processing industries.
Monel Plate Supplier In Saudi Arabia, Monel Plate Suppliers
Pursuing the products’ high quality and reliability is one of the requirements that we consider non-negotiable. Monel plates that we supply are checked and tested to ensure that they meet the required standard before being supplied to the market. Among the tests that are done are the ultrasonic, chemical, and mechanical tests. These tests are a guarantee that our Monel plates are not subject to defects and can endure the pressure of service delivery in different conditions.
As one of the largest stockholders of Monel plate in Saudi Arabia, we stock Monel plate in various sizes, thicknesses and specifications to meet the needs of the customers. Our professional team has many years of experience in providing individual approaches and guaranteeing fast and efficient work from the moment of consultation to the final stage of the work.
When you choose to do business with us, you are choosing a company that is all about quality and our customers. Our goal is to provide the customer with Monel plates that are of the highest quality, and quality is guaranteed by experience and professionalism. We are the company to approach your Monel plate needs in Saudi Arabia and sample our quality and reliability.
Monel Plates Specification in Saudi Arabia
| Specifications: | ASTM B127 / ASME SB127 |
| Dimensions : | ASTM, ASME, and API |
| Size : | 15NB to 150NB In |
| Thickness : | From 2 to 40 mm |
| Production : | Hot-Rolled (HR) / Cold-Rolled (CR) |
| Grade : | Monel 400 / K500 UNS (N04400, N05500), DIN (2.4360, 2.4375) |
| Form : | Coils, Foils, Rolls, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
Types of Monel Plates in Saudi Arabia
Monel Hot Rolled Plate in Saudi Arabia
Monel Cold Rolled Plate in Saudi Arabia
Monel Plain Plate in Saudi Arabia
Monel Plates Equivalent Gardes in Saudi Arabia
| STANDARD | UNS | WNR. | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | N04400 | 2.4360 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
| Monel K500 | N05500 | 2.4375 | – | – | – | – | – |
Monel Plates Chemical Composition in Saudi Arabia
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
Mechanical Properties of Monel Plates in Saudi Arabia
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Monel Plates Industrial Application in Saudi Arabia
- Oil and Gas Industry
- Construction and Architecture
- Chemical and Petrochemical Industry
- Food and Beverage Industry
- Pharmaceutical Industry
- Automotive Industry
- Power Generation
- Water Treatment and Desalination
