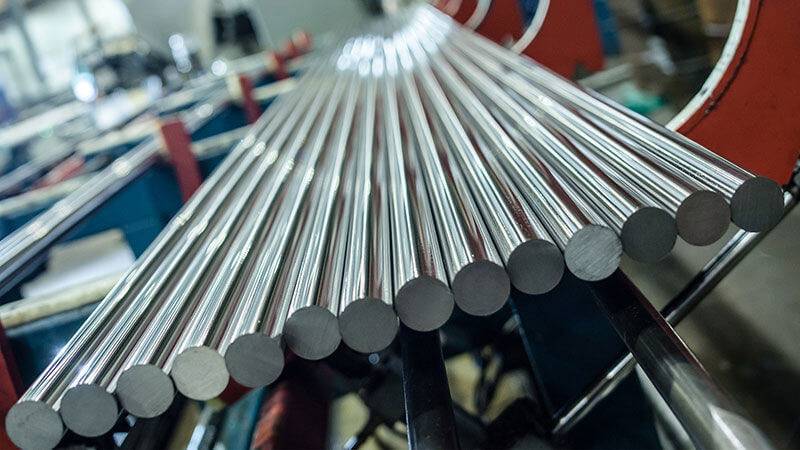

Amigo Impex is a trusted Hastelloy C276 bars and rods manufacturer and supplier in Mumbai, India. Since 2013, we have delivered Hastelloy C276 bars, handling all cutting, machining, threading, and testing completely in-house before dispatch.
Hastelloy C276 bars and rods (UNS N10276) are low-carbon nickel-chromium-molybdenum bar stock supplied against ASTM B574 and ASME SB-574. Chromium at 14.5–16.5% and molybdenum at 15.0–17.0% help Hastelloy C276 resist both oxidising and reducing media, while 3.0–4.5% tungsten reinforces it against pitting and crevice attack in chloride service. Solution-annealed rod reaches a minimum tensile strength of 690 MPa with 40% elongation, so machined valve stems and shafts keep ductility under load. European drawings mark the identical chemistry W.Nr. 2.4819.
Our range spans 5 mm to 500 mm across round, square, hex, flat, and forged sections. ASTM B574 rod certification applies from 7.94 mm to 88.9 mm; heavier sections are supplied as forged bar to ASTM B564 or to B574 chemistry with mechanical properties agreed upon at the order stage. Demand comes mainly from chemical processing, flue gas desulphurisation, oil and gas, pulp and paper, and pumps and valves. Per-kg pricing is quoted in INR or USD. Consignments move pan-India from Mumbai or are exported through our facility. Amigo Impex holds AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certifications, and a mill test certificate accompanies every order.
A C276 bar enquiry typically specifies six order variables: governing standard, profile, size band, surface finish, tolerance class and supply condition. The table sets out the range of Hastelloy C276 rods and bars we manufacture and hold.
ASTM B574-23 covers rod and bar in UNS N10276. Forged sections are supplied to ASTM B564 and threaded fasteners to ASTM F468. Square, hex and flat sections are supplied to the same chemistry by agreement, forged sections to ASTM B564, and threaded fasteners to ASTM F468.
| Standard | Scope |
|---|---|
| ASTM B574 | Low-carbon Ni-Cr-Mo alloy rod in UNS N10276 |
| ASME SB-574 | ASME Code version of ASTM B574 for pressure equipment |
Nickel forms the remainder of UNS N10276 once molybdenum, chromium, tungsten and iron take their shares. Carbon is limited to 0.010% maximum, helping minimise carbide precipitation during welding.
| Element | Weight % |
|---|---|
| Nickel (Ni) | Remainder |
| Molybdenum (Mo) | 15.0 - 17.0 |
| Chromium (Cr) | 14.5 - 16.5 |
| Iron (Fe) | 4.0 - 7.0 |
| Tungsten (W) | 3.0 - 4.5 |
| Cobalt (Co) | 2.5 max |
| Manganese (Mn) | 1.00 max |
| Vanadium (V) | 0.35 max |
| Silicon (Si) | 0.08 max |
| Phosphorus (P) | 0.04 max |
| Carbon (C) | 0.010 max |
| Sulphur (S) | 0.03 max |
ASTM B574 sets three acceptance minima for solution-annealed Alloy C276 rod. Design calculations for stems, studs and shafts start from the yield figure below, which every certified heat meets.
| Property | Value (Solution Annealed) |
|---|---|
| Tensile Strength, min | 690 MPa (100 ksi) |
| Yield Strength (0.2% offset), min | 283 MPa (41 ksi) |
| Elongation in 50 mm, min | 40% |
Every designation in this table names the same Ni-Cr-Mo chemistry. Bar we certify as UNS N10276 satisfies a drawing that's marked 2.4819 or NW0276.
| Country / System | Designation |
|---|---|
| USA (UNS) | UNS N10276 |
| Germany (W.Nr. / DIN) | 2.4819, NiMo16Cr15W, DIN 17744 / 17750 / 17751 / 17752 |
| Japan (JIS) | NW0276 |
| China (GB) | NS3306, NS334 |
Diameter decides the finish a bar arrives with. Sections above 3 in aren't centreless ground; they ship hot-rolled and rough-turned. Hastelloy C276 round bar in the ranges below is held as ready stock.
| Parameter | Range |
|---|---|
| Size | 5 - 500 mm (ASTM B574-23 covers 7.94–88.9 mm solution annealed, and 6.35–88.9 mm solution annealed and cold worked. Sizes below 6.35 mm and above 88.9 mm are supplied to B574/B564 chemistry with mechanical properties agreed at order stage.) |
| Length | 100 - 3000 mm and above |
| Cut to Length | Sawn in-house against the order |
| Centreless Ground Stock | Up to 3 in diameter |
| Rough Turned Stock | above 3 in (76.2 mm) up to 500 mm |
| Tolerance | h8 - h13, k9 - k12 |
The profile follows the finished component. The hex bar feeds glands and nuts, while threaded rod becomes stud bolting. 6 types of Hastelloy C276 bars and rods leave our works.
As a Hastelloy C276 bar stockist, we dispatch bars from our Mumbai stockyard cut to length, bundled and strapped, or crated in wood for sea freight. Grade, heat number, size and specification appear on every bundle tag. As a Hastelloy C276 bars and rods exporter, we route consignments through the facility to the USA, the Gulf, Europe and Asia, while urgent domestic dispatches move within 1 - 2 days.
As a Hastelloy C276 rod supplier, we test every heat of UNS N10276 bar in-house across chemical analysis, tensile testing and hardness. Inspection by an independent agency is supported when the order calls for it. Our company holds AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certifications, and the mill test certificate travels with each consignment.
Hastelloy C276 bars and rods are priced at approximately ₹2,800–₹4,000 per kg in India and US$40–US$50 per kg internationally. Nickel and molybdenum make up close to three-quarters of the alloy, so nickel and molybdenum price movements set the base rate. Diameter, form, finish, tolerance, order weight, certification level and lead time, then move the final per-kg figure.
Send your size, finish and quantity for a current Hastelloy C276 bar price.
Request a Quote60–70 tonnes held in Mumbai, with urgent requirements dispatched within one to two days.
AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018, with an MTC on every order.
Cutting, machining, threading, fabrication and testing all handled at our own Mumbai facility.
Original mill certificates plus our own test reports, so every batch can be traced back.
Non-standard sizes and specifications made to order.
Dispatched from Mumbai to every major Indian city, and exported to USA, Gulf, Europe, Asia
ASTM B574 covers Hastelloy C276 rod; ASME adopts it as SB-574. Flat, square and hex sections are supplied to B574 chemistry by agreement, and forgings to ASTM B564. The specification governs the low-carbon Ni-Cr-Mo alloy rod in UNS N10276.
Our general stock range spans 5 mm to 500 mm across round, square, hex, flat, and forged sections. However, please note that official ASTM B574 rod certification applies strictly from 7.94 mm to 88.9 mm. Sections heavier than 88.9 mm are supplied as forged bars certified to ASTM B564, or to ASTM B574 chemistry with mechanical properties mutually agreed upon at the enquiry stage.
The minimum tensile strength of a Hastelloy C276 bar under ASTM B574 is 690 MPa (100 ksi), alongside 283 MPa (41 ksi) yield and 40% elongation.
Hastelloy C276 bars and rods are priced at approximately ₹2,800–₹4,000 per kg in India and US$40–US$50 per kg internationally, so this grade sits well above stainless steel bars.
Yes, Hastelloy C276 bars and rods can be welded and machined after purchase. The alloy doesn't need post-weld heat treatment, though its low machinability calls for slow speeds, heavy feeds and rigid tooling.
Solution annealed is the standard supply condition for C-276 bars and rods, unless a different condition is agreed at the time of order.
Machined into shafts, stems, fasteners and agitator parts, Nickel Alloy C276 bar serves these eight industries.
