INCONEL 825 PIPES & TUBES SUPPLIER

What Is Inconel 825 Pipe?

Amigo Impex is one of the leading exporters and suppliers of high-quality Incoloy 825 pipes in different grades and alloys. We are well known as an importer of all ferrous and nonferrous products. As per our customer's requirements, we supply pipes and tubes in various types, shapes, sizes, grades, standards, specifications, thicknesses, finishes, forms, lengths, and so on. There are multiple types of pipes and tubes available such as welded pipe, seamless, round, custom, decorative tubes, polish tubes, instrumentation, heat exchanger tubes, and many more. Incoloy 825 contains chromium, nickel, and iron alloy with a small amount of copper, titanium, and molybdenum. The high amount of chromium alloy provides excellent resistance to much environmental corrosion. The grade 825 Incoloy has many characteristics; therefore, it is used in various applications.

Nickel Alloy 825 Pipe, Inconel 2.4858 Tubes, ASTM B423 Incoloy 825 Pipe, Alloy 825 Pipes, Inconel N08825 Pipes, Incoloy 825 Seamless Tubing, Inconel 825 Tubes, Inconel 825 Seamless Pipe Suppliers in Mumbai, India

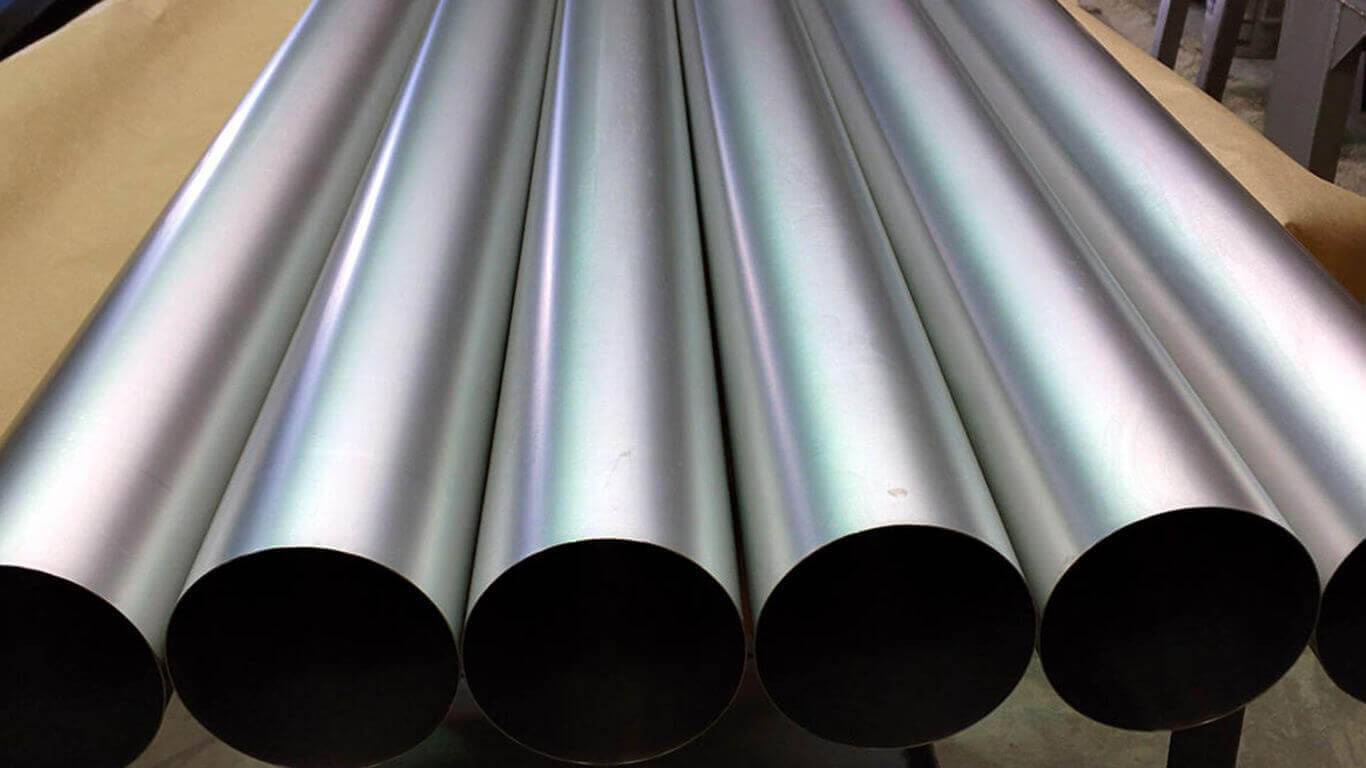

Inconel 825 Pipes/Tubes

Product Description

  • Type: Pipes/Tubes
  • Material: Incoloy
  • ASTM: B423, B704
  • Grade: 825
  • UNS: N08825
  • WERKSTOFF: 2.4858

The Incoloy 825 tubes have good workability, machinability, high work performance, weldability, formability, fabricability, accurate surface dimension, and many more. The Inconel 825 tube offers good strength, corrosion resistance properties, mechanical properties, tensile strength, and ductility. In the reducing environments, the pipe and tubes provide excellent resistance to many acids like nitric, sulfide, and phosphoric. The alloy 825 tube offers superior resistance to corrosion and oxidation in server environments. The pipes and tube grades have excellent resisting properties like resistance to chloride stress and cracking corrosion, resistance to pitting, resistance to a crevice, and much atmosphere corrosion. It is used in pollution control equipment, food, and gas because of its excellent corrosion resistance characteristic. The square 825 Incoloy tubes increase the resistance property to aqueous corrosion.

The high-quality incoloy 825 tubing has many applications, including chemical, petrochemical, marine, pulp, paper, oil, and gas. It is also used in seawater applications, shipbuilding, construction, boiler, automobiles, condensers, nuclear and thermal power plants, and many more. We conduct different types of tests to ensure the quality of alloy 825 tubing, such as macro, hardness, toughness, chemical, mechanical, eddy current, impact, and many other tests.

Inconel JIS NCF 825 ERW Pipes, ASTM B704 Incoloy 825 ERW Tubes, Inconel 825 Welded Pipe, Incoloy® Alloy 825 Welded Tubes, Incoloy 2.4858 Tubing, Inconel Alloy 825 Tubing Exporter, UNS N08825 Tubes, Nickel Alloy 825 Tubes, Alloy 825 Tubing, Incoloy® Alloy 825 Tubes Manufacturer in Mumbai.


FAQS

1 What are the common sizes and dimensions of Inconel 825 Pipes?

Common sizes and dimensions of Inconel 825 Pipes include 1/2" to 6" nominal bore sizes, with varying wall thicknesses & lengths.

2 What is the maximum temperature that Inconel 825 Pipes can withstand?

The maximum temperature that Inconel 825 Pipes can withstand is approximately 540 degrees Celsius.

3 What are the typical applications of Inconel 825 Tubes?

Typical applications of Inconel 825 Tubes include chemical processing, oil and gas extraction & marine engineering.


Inconel Alloy 825 Pipes & Tubing Specification

Inconel 825 Pipe manufacturer and Supplier

ASTM

ASTM B 423, B 704, B 705 / ASME SB 423, SB 704, SB 705

Standard

ASTM, ASME and API

Pipe Size

15 NB UP TO 600 NB IN SCH 5S, 10S,10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS

Tube Size

1 mm OD upto 254 mm OD in 0.2 TO 20 mm thickness.

Length

Single Random, Double Random & Required Length, Cut Length

End

Plain End, Beveled End, Treaded

Types of Incoloy 825 Pipe and Tubes

Inconel 825 Seamless Pipe

Inconel 825 Seamless Pipe

ASTM B423 Incoloy Alloy 825 Seamless Pipe, ASME SB423 Inconel 825 Seamless Pipe, UNS N08825 Seamless Pipe, 2.4858 Seamless Pipe, JIS NCF 825 Seamless Pipe, Nickel Alloy 825 Seamless Pipe Exporter, Inconel 825 Seamless Pipe Supplier, Incoloy 825 Seamless Pipe Manufacturer in Mumbai/India.

Inconel 825 Welded Pipe

Inconel 825 Welded Pipe

ASTM B705 Incoloy Alloy 825 Welded Pipe, UNS N08825 Welded Pipe, 2.4858 Welded Pipe, ASME SB705 Inconel 825 Welded Pipes, Inconel 825 Welded Pipe Supplier, Nickel Alloy 825 Welded Pipe Exporter, Incoloy 825 Welded Pipes Manufacturer in Mumbai/India.

Inconel 825 ERW Pipe

Inconel 825 ERW Pipe

ASTM B705 Incoloy Alloy 825 ERW Pipe, UNS N08825 ERW Pipe, 2.4858 ERW Pipe, ASME SB705 Inconel 825 ERW Pipes, Inconel 825 ERW Pipe Supplier, Nickel Alloy 825 ERW Pipe Exporter, Incoloy 825 ERW Pipes Manufacturer in Mumbai/India.

Inconel 825 Seamless Tube

Incoloy 825 Seamless Tube

ASTM B423 Inconel Alloy 825 Seamless Tube, UNS N08825 Seamless Tubes, 2.4858 Seamless Tubes, ASME SB423 Inconel 825 Seamless Tubes, Incoloy 825 Seamless Tubing Supplier, Nickel Alloy 825 Seamless Tubing Exporter, Inconel 825 Seamless Tubes Manufacturer in Mumbai/India.

Inconel 825 Welded Tube

Inconel 825 Welded Tube

ASTM B704 Incoloy Alloy 825 Welded Tube, UNS N08825 Welded Tubes, 2.4858 Welded Tubes, ASME SB704 Inconel 825 Welded Tubing, Inconel 825 Welded Tubing Supplier, Nickel Alloy 825 Welded Tubing Exporter, Incoloy 825 Welded Tubes Manufacturer in Mumbai/India.

Inconel 825 ERW Tubes

Inconel 825 ERW Tubes

ASTM B704 Incoloy Alloy 825 ERW Tubes, UNS N08825 ERW Tubes, 2.4858 ERW Tubes, ASME SB704 Inconel 825 ERW Tubing, Inconel 825 ERW Tubing Supplier, Nickel Alloy 825 ERW Tubes Exporter, Incoloy 825 ERW Tubes Manufacturer in Mumbai/India.

Equivalent Grades of Inconel 825 Pipes and Tubes

STANDARD UNS WERKSTOFF NR. JIS AFNOR BS GOST EN OR
Incoloy Alloy 825 N08825 2.4858 NCF 825 NFE30C20DUM NA 16 ЭП703 NiCr21Mo XH38BT

Inconel 825 Pipe and Tubes Chemical Properties

Grade C Mn Si S Cu Fe Ni Cr Al Ti
Incoloy 825 0.05 max 1.00 max 0.5 max 0.03 max 1.50 – 3.00 22.00 min 38.00 – 46.00 19.50 – 23.50 0.02 max 0.06 – 1.20

Inconel 825 Pipe / Tubes Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Incoloy 825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %
