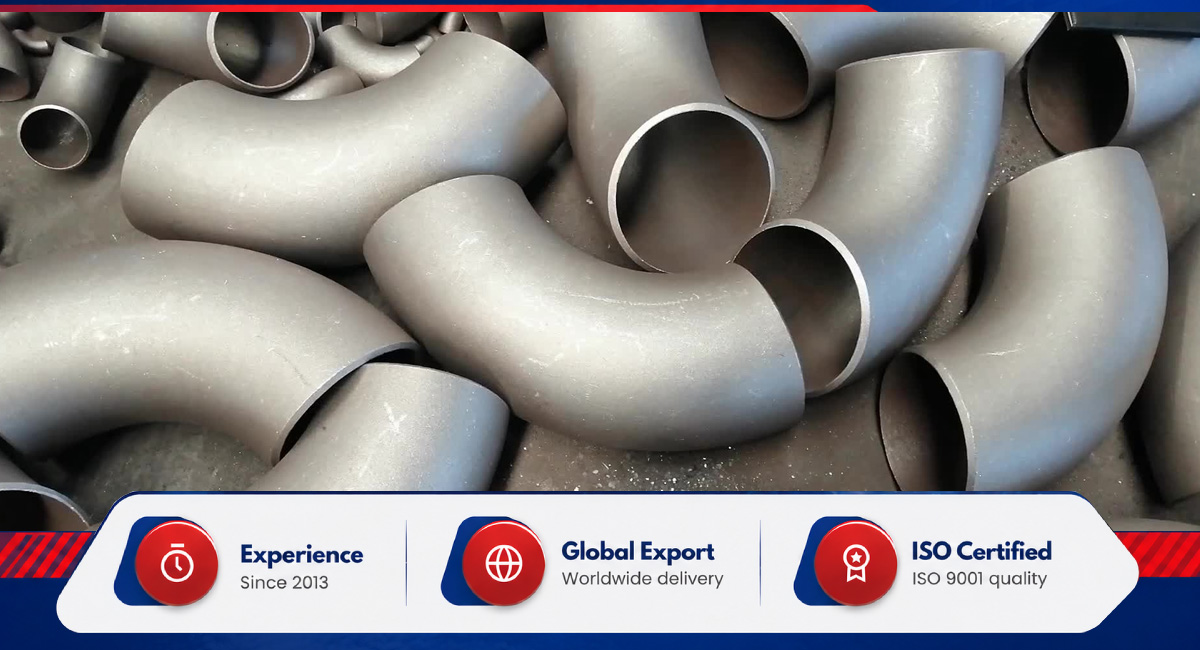

Amigo Impex is a Monel pipe fittings manufacturer, stockist, supplier and exporter based in Mumbai, active in nickel alloy piping since 2013. Production covers butt-weld elbows, tees, reducers, caps and stub ends to ASTM B366 / ASME SB-366 in grade WPNC, dimensioned under ASME B16.9, which has carried the short radius elbows and returns of the withdrawn ASME B16.28 since 2001, with MSS SP-43 for lightweight walls, plus forged socket-weld and threaded pieces to ASME B16.11 from ASTM B564 forgings. One grade carries the range. Monel 400 (UNS N04400) holds nominally 67% nickel with 30% copper, and that balance withstands rapidly flowing seawater, hydrofluoric acid, brine and alkali service from subzero temperatures to approximately 538°C (1,000°F).
Seamless fittings span 1/2 inch to 10 inch NB, welded construction extends coverage to 48 inch NB, and schedules run SCH 5 through SCH XXS. Twelve stocked patterns handle direction change, branching, bore reduction and termination. Cutting, machining, threading, fabrication, testing and packing are handled at our own facility, and roughly 60 to 70 tonnes of nickel alloy stock wait in Mumbai for quick dispatch. Marine, shipbuilding, oil and gas and chemical process lines absorb the bulk of consignments. Supply covers pan-India, with exports reaching the USA, the Gulf, Europe and Asia. Every order leaves with an EN 10204 3.1 mill test certificate, and AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certification stands over the whole operation.
Line class approval turns on standard, grade, size band, schedule and paperwork. Every parameter of an order of Monel 400 pipe fittings is quoted and produced to sit in the table that follows.
Material documents and dimensional documents do separate jobs on Monel 400 pipe fittings. Chemistry, heat treatment and testing sit in the ASTM specifications, and the ASME B16 series draws the geometry.
| Standard | Scope |
|---|---|
| ASTM B366 / ASME SB-366 | Wrought nickel and nickel alloy welding fittings, Monel buttweld items in grade WPNC |
| ASTM B564 / ASME SB-564 | Nickel alloy forgings, the base material for socket weld and threaded fittings |
| ASME B16.9 | Factory-made wrought buttwelding fittings |
| ASME B16.28 | Factory-made wrought buttwelding fittings, NPS 1/2 to NPS 48 (DN 15 to DN 1200), long and short radius elbows and returns included since 2001, when the content of the now-withdrawn ASME B16.28 was absorbed |
| MSS SP-95 / MSS SP-97 | Swage nipples and bull plugs; integrally reinforced forged branch outlet fittings, both named in ASTM B366 as CR grade dimensional standards |
| ASME B16.11 | Forged fittings, socket welding and threaded |
| MSS SP-43 | Lightweight wrought buttwelding fittings, including the CR corrosion-resistant class |
One grade populates the Monel pipe fitting range. Drawings marked Alloy 400, NiCu30Fe, W.Nr. 2.4360 or NW 4400 describe the identical alloy.
Monel 400 fittings resist the chloride stress corrosion cracking that fractures austenitic stainless lines, and the alloy hardens only by cold working, never by heat treatment.
Bore decides the construction route on Alloy 400 pipe fittings. Seamless supply ends at 10-inch NB; welded manufacture continues to 48-inch NB, and bores the catalogue band doesn't hold are made to order.
| Fitting Group | Governing Documents | Size Band | Wall or Class |
|---|---|---|---|
| Seamless butt-weld elbows, tees, reducers, caps, crosses, and stub ends | ASTM B366 with ASME B16.9 | 1/2 inch to 10 inch NB | SCH 5 through SCH XXS |
| Welded butt-weld fittings, radiographed or ultrasonically tested classes included | ASTM B366 dimensioned to ASME B16.9 | 1/2 inch to 48 inch NB (DN 15 to DN 1200) | SCH 5 through SCH XXS |
| Forged socket weld and threaded fittings | ASTM B366 grade WPNC dimensioned to ASME B16.11, forgings to ASTM B564 | 1/8 inch to 4 inches NPS | Socket-weld Class 3000 (to 4 in), Class 6000 (to 2 in), Class 9000 (1/2 in to 2 in); threaded Class 2000, 3000 and 6000 (to 4 in) |
Twelve configurations cover the duties a Monel butt-weld fitting performs in a line: turning, branching, reducing and capping. Every piece ships bevelled, carrying its grade mark and heat stamp.
Case construction changes with the fitting inside it. Buttweld items travel in timber cases with sleeved bevels, forged pieces go poly-bagged into boxes, and each tag lists size, schedule, grade and heat. Dispatch of Monel fittings from Mumbai reaches pan-India, while export consignments ship from Mumbai to the USA, the Gulf, Europe and Asia. Ready stock clears the works in 1 to 2 days; made-to-order lots take about 30 days.
Release testing on UNS N04400 fittings runs in-house. Each batch passes positive material identification, dimensional verification against ASME B16.9 or B16.11 and a bevel-by-bevel visual inspection before packing. The EN 10204 3.1 certificate carries the original mill record alongside our own test results; a 3.2 document follows on request, and third-party inspection is arranged whenever the purchase order names it. AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certifications are held by our company.
Contact Amigo Impex, a trusted Monel pipe fittings supplier, for the current price of Monel pipe fittings based on size, specification and quantity.
Request a Quote60–70 tonnes held in Mumbai, with urgent requirements dispatched within one to two days.
AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018, with an MTC on every order.
Cutting, machining, threading, fabrication and testing all handled at our own Mumbai facility.
Original mill certificates plus our own test reports, so every batch can be traced back.
Non-standard sizes and specifications made to order.
Dispatched from Mumbai to every major Indian city, and exported to USA, Gulf, Europe, Asia
ASTM B366, carried in the ASME code as SB-366, covers wrought Monel pipe fittings of buttweld construction under grade WPNC. Forged socket weld and threaded fittings are certified to ASTM B564 with dimensions from ASME B16.11.
Seamless Monel pipe fittings are supplied from 1/2 inch to 10 inch NB, and welded fittings from 1/2 inch to 48 inch NB, covering DN15 to DN1200. Forged items run 1/8 inch to 4 inches.
Seamless or welded construction is called out through a WP suffix beside the ASTM B366 designation: WP(S) means seamless, WP(W) welded, WP(WX) welded with full radiography and WP(U) welded with full ultrasonic examination. CR marks corrosion-resistant fittings dimensioned to MSS SP-43.
Monel 400 pipe fittings replace stainless steel where seawater chlorides, hydrofluoric acid, brine or hot alkali attack the austenitic grades. Where the line carries none of those media, stainless remains the lower-cost choice.
An EN 10204 3.1 certificate ships with every Monel pipe fittings order and ties each piece back to its heat. A 3.2 certificate and third-party inspection are arranged on request.
Ready Monel pipe fittings dispatch from Mumbai in 1 to 2 days. Made-to-order production, covering non-standard bores, bends and forged classes, needs about 30 days from confirmed drawings.
Eight industries draw on nickel-copper alloy pipe fittings for seawater, brine and acid duty.
