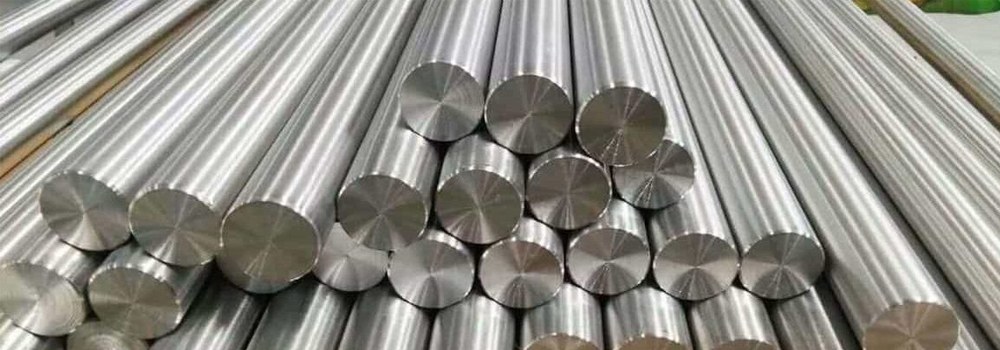

Titanium Round Bar in Malaysia
Amigo Impex is one of Malaysia’s leading titanium Pipe manufacturers and suppliers, and it deals with the best quality products and services. Titanium Pipes produced by us are intended to perform to the optimum in different applications and are made to match the standards.
It is possible to characterise our titanium pipes by features such as high corrosion resistance and a high strength-to-weight ratio. These attributes make them ideal for use in conditions where the equipment is likely to be exposed to much abuse. This is because titanium has the ability not to corrode when it comes into contact with chemicals, salt water or high temperatures, thus our pipes can be used in chemical processing, marine and aerospace industries.
Titanium Round Bar In Malaysia, Titanium Round Bar Suppliers
In the aerospace industry, our Titanium Pipes are used in conditions where high stress, high strength and low weight are needed. They are also applied widely in the oil and gas industry because of their ability to withstand the eroding action of several fluids and gases. In addition, our pipes are in medical applications where biocompatibility and high strength of the pipes are important for implants and surgical tools.
In order to manufacture our Titanium Pipes of the highest quality, we adhere to the following quality control measures. This includes visual and non-visual tests like chemical, tensile, and dimensional tests. The pipes are manufactured in accordance with the standards set in the international market and thus the quality of the supplied pipes is guaranteed.
As one of the Malaysian titanium pipe suppliers and manufacturers, we offer our clients a variety of sizes and grades. We have a good supply chain and inventory, so we can deliver and support your needs accurately.
Our goal is to offer the best quality of the products we sell and the services that we deliver. Our experienced staff is always ready to help you choose the proper titanium pipe and make your purchase as comfortable as possible.
Titanium Round Bars Specification in Malaysia
| Specifications | ASTM B348/ ASTM SB348 |
| Dimension Standard | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Bar Diameter | 3 ~ 800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm. Width: 10 to 500mm. |
| Square bar size | 4 to 100mm |
| Rectangular Bars | Size: 33 x 30mm to 295 x 1066mm. Thickness: 3.0 to 12.0mm. |
| Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2 to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients requirements |
| Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Rolled Bars Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
Types of Titanium Round Bars in Malaysia
Titanium Square Bar in Malaysia
Titanium Hex Bar in Malaysia
Titanium Flat Bar in Malaysia
Titanium Round Bars Equivalent Gardes in Malaysia
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 2 | 3.7035 | R50400 |
| Titanium Gr 5 | 3.7165 | R56400 |
Titanium Round Bars Chemical Composition in Malaysia
| Grade | C | N | O | H | Ti | Fe | V | AI |
| Titanium Gr 2 | 0.10 max | 0.03 max | 0.25 max | 0.015 max | bal | 0.30 max | ||
| Titanium Gr 5 | 0.10 max | 0.05 max | 0.20 max | 0.015 max | bal | 0.30 max | 3.5-4.5 | 5.5-6.75 max |
Mechanical Properties of Titanium Round Bars in Malaysia
| Min.Tensile(KSI) | Min.Yield(KSI) | Hardness | Tensile Modulus | Poisson’s Ratio |
| 50 | 40 | 14.9 | 103 GPa | 0.34-0.10 |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Titanium Round Bars Industrial Application in Malaysia
- Oil and Gas Industry
- Construction and Architecture
- Chemical and Petrochemical Industry
- Food and Beverage Industry
- Pharmaceutical Industry
- Automotive Industry
- Power Generation
- Water Treatment and Desalination
