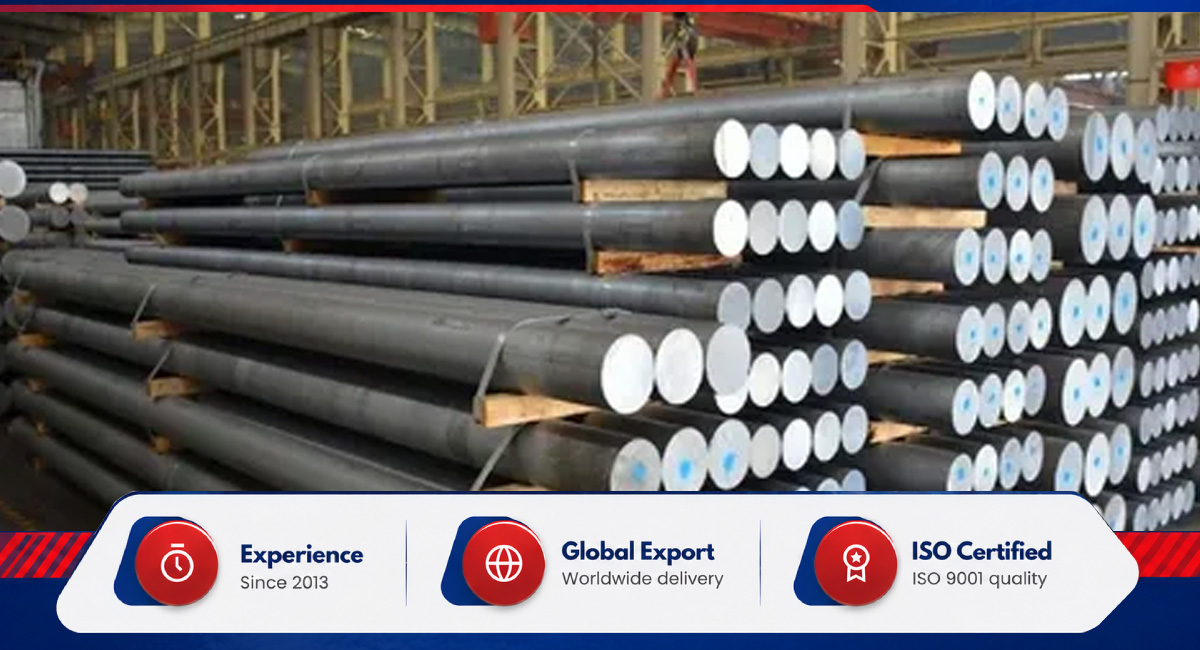

Amigo Impex is an Incoloy Bars & Rods manufacturer, stockist, supplier and exporter based in Mumbai, India, established in 2013. Our bar range covers three grades such as Incoloy 800 (UNS N08800), Incoloy 825 (UNS N08825) and Incoloy 925 (UNS N09925), certified to ASTM B408 / ASME SB-408, ASTM B425 / ASME SB-425 and ASTM B805 respectively. ASME has not adopted B805 into Section II Part B, so grade 925 bar carries the ASTM reference only.
Incoloy bar is a nickel-iron-chromium alloy. In grade 800, iron is the largest element, which keeps that grade economical against nickel-dominant alloys, while chromium holds oxidation resistance at high temperatures. Grades 825 and 925 lift nickel well above grade 800: SB-425 sets 38.0 to 46.0 per cent for UNS N08825, and ASTM B805 sets 42.0 to 46.0 per cent for UNS N09925. SB-408 notes that UNS N08800 is normally employed in service up to and including 1100°F (593°C). Above that temperature, creep and rupture strength decide the choice, and the controlled grain size grades 800H (UNS N08810) or 800HT (UNS N08811) are specified instead. Both sit in the same B408 specification.
Round bar spans 3 mm to 800 mm in diameter. Hex, square, flat, rectangular, forged and threaded sections are also available in lengths up to 6 metres, supplied bright or black to suit the machining allowance planned. Cutting, machining, threading, fabrication, testing and packing all run in-house at the Mumbai works.
Around 60 to 70 tons of ready material are held in stock, covered by AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certification, and an EN 10204 3.1 mill test certificate accompanies every order.
The table given below defines the supply envelope for Incoloy rod, covering the grades, section ranges, supply conditions, finishes and certification provided with each dispatch.
Each grade of Incoloy bar answers to its own rod-and-bar specification. The table maps every ASTM document and its ASME counterpart to the grade it governs, so the right one lands on the purchase order.
| Standard | Scope |
|---|---|
| ASTM B408 / ASME SB-408 | Nickel-iron-chromium alloy rod and bar |
| ASTM B425 / ASME SB-425 | Ni-Fe-Cr-Mo-Cu alloy rod and bar |
| ASTM B805 | Precipitation Hardening Nickel Alloys Bar and Wire (covers UNS N09925 among other grades) |
Service conditions pick the grade before price does. Heat up to 593°C points to 800, hotter furnace service to 800H or 800HT, wet acid and chloride exposure to 825, and 925 pairs that corrosion resistance with age-hardened strength.
Incoloy 800 bar takes oxidation and carburisation duty in furnace and heat-treatment hardware under ASTM B408.
Molybdenum and copper equip UNS N08825 bar for sulphuric and phosphoric acid and chloride media.
Age hardening lifts the yield strength of UNS N09925 bar for sour oil and gas components.
Diameter decides machining yield, freight class and rate per kilogram, so size is the first question in most bar enquiries. Stocked material sits inside the bands below, and sections outside them are produced against order.
| Section | Size Range |
|---|---|
| Round Bar | 3 mm to 800 mm diameter |
| Hex Bar | 3.2 mm to 100 mm across flats |
| Square Bar | 4 mm to 100 mm |
| Flat Bar | 2 mm to 100 mm thick, 10 mm to 500 mm wide |
| Length | Up to 6 m standard; cut to specified length |
Weights in this chart are theoretical, calculated on 7.94 g/cm³, the density of Incoloy 800, so bar in 825 (8.14 g/cm³) and 925 (8.08 g/cm³) runs marginally heavier. Multiply the squared millimetre diameter by 0.006236 to reach kilograms per metre.
| Diameter | Weight per Metre (Theoretical) |
|---|---|
| 10 mm | 0.62 kg |
| 25 mm | 3.90 kg |
| 50 mm | 15.59 kg |
| 100 mm | 62.36 kg |
| 150 mm | 140.31 kg |
The Incoloy bars and rod types held at our works span the standard rolled sections, the bright supply route and forged stock for diameters beyond rolling capacity.
Surface condition sets how much machining allowance an Incoloy round bar carries, and it feeds straight into the per-kg rate. A black surface leaves heavy cleanup where ground stock is already near size. Seven finishes are supplied.
Incoloy bars and rods leave from the Mumbai stockyard in strapped bundles, wooden cases or palletised lots, every lot identified by grade, section size, heat number and governing specification. Despatch covers pan-India, and export consignments in seaworthy packing reach the USA, the Gulf, Europe and Asia. Urgent despatches clear in 1 to 2 days; production items need around 30 days.
Chemical analysis, PMI, hardness and dimensional checks run in-house before Incoloy alloy bars are packed, and third-party inspection agencies are supported on request. Every order carries an EN 10204 3.1 mill test certificate drawn from the original mill and completed by our own laboratory results, and our company holds AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certifications.
Contact Amigo Impex for the current price of Incoloy Bars & Rods based on grade, size, specification and quantity.
Request a Quote60–70 tonnes held in Mumbai, with urgent requirements dispatched within one to two days.
AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018, with an MTC on every order.
Cutting, machining, threading, fabrication and testing all handled at our own Mumbai facility.
Original mill certificates plus our own test reports, so every batch can be traced back.
Non-standard sizes and specifications made to order.
Dispatched from Mumbai to every major Indian city, and exported to USA, Gulf, Europe, Asia
No. Incoloy is a nickel-iron-chromium family and Inconel is nickel-chromium based with little or no deliberate iron. Grade 800 is iron-rich, but UNS N08825 carries 38.0 to 46.0 per cent nickel and UNS N09925 carries 42.0 to 46.0 per cent, so the two families overlap on nickel content more than the names suggest. They are still not interchangeable on a drawing without engineering approval.
Our Incoloy bars and rods conform to ASTM B408 / ASME SB-408 for grade 800, ASTM B425 / ASME SB-425 for grade 825 and ASTM B805 for grade 925.
Incoloy bright bar is cold drawn or centreless ground to a clean, dimensionally accurate surface ready for machining. Black bar isn't finished at all: it leaves the mill hot rolled with its oxide skin intact, costs less per kg, and suits parts where an allowance is removed anyway.
Incoloy round bar is stocked from 3 mm to 800 mm diameter in lengths up to 6 metres, and every section is cut to specified length in-house.
Square the diameter in millimetres and multiply by 0.006236 to reach kilograms per metre at the 7.94 g/cm³ density of Incoloy 800; a 50 mm bar weighs 15.59 kg per metre.
Yes, an EN 10204 3.1 mill test certificate ships with every consignment of Incoloy bars and rods, tying each bar back to its heat number for full traceability.
Machined into shafts, valve stems, studs and furnace fixtures, Incoloy alloy bars serve eight industries.
