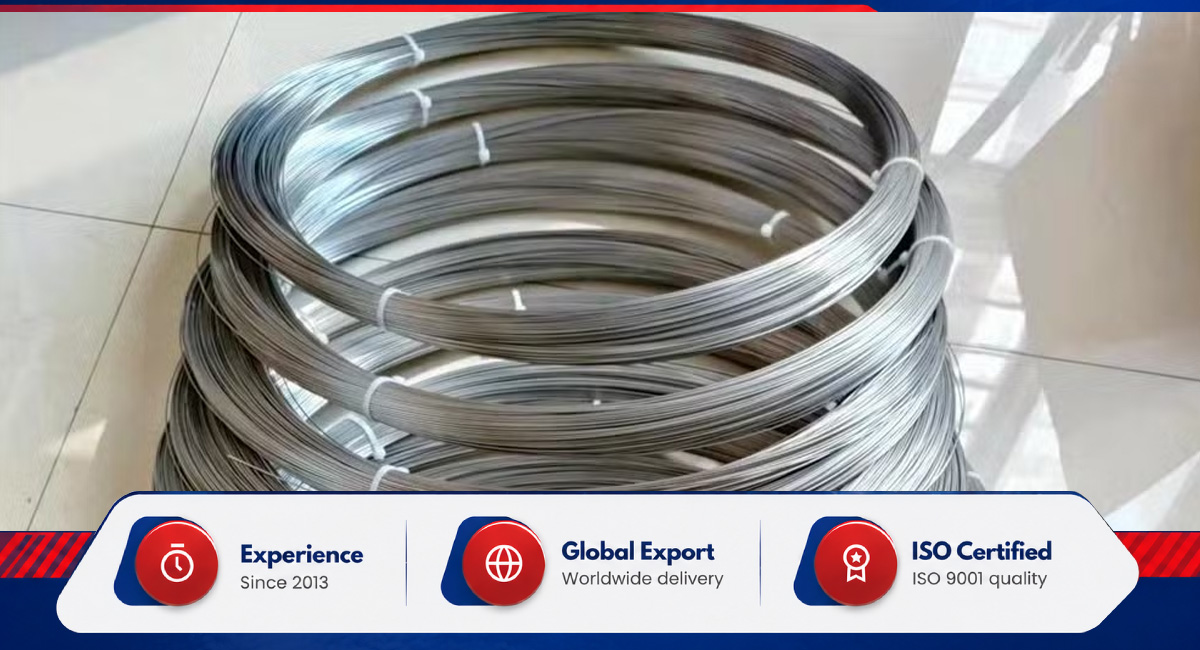

Amigo Impex is an Incoloy wires manufacturer, supplier, stockist and exporter working from Mumbai, India, for over a decade. Four grades make up the drawn range: Incoloy 800, 800H, 800HT and 825, nickel-iron-chromium alloys ordered as wire wherever furnace heat, carburising atmospheres or acid streams cut short the life of stainless stock.
Iron carries a large share of the matrix in every Incoloy grade, which keeps the alloy economical to draw, while chromium builds the protective oxide film and nickel holds off chloride stress corrosion cracking. Incoloy 800 covers general furnace and oxidising service, while 800H and 800HT carry the creep and stress rupture strength needed above roughly 593°C. Grade 825 adds molybdenum, copper, and titanium to withstand sulphuric and phosphoric acid exposure.
Drawing starts at 0.8 mm and runs upward, in round, flat and shaped profiles, annealed through spring temper with a bright cold-drawn finish. Coil, spring and straightened cut length formats cover spring making, furnace fixture lacing and fabrication work across oil and gas, chemical and power plants.
Cutting, machining, testing and packing are handled in-house in Mumbai, where 60 to 70 tonnes of ready nickel alloy stock lets urgent despatches leave within 1 to 2 days; a diameter drawn to order needs around 30 days. Every lot ships with an EN 10204 3.1 mill test certificate, and we hold AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certifications. Supply covers pan-India, with exports to the USA, the Gulf, Europe and Asia.
Grade, diameter, temper and supply format frame an Incoloy wires enquiry before price. The table records the standard supply envelope; a requirement outside it is referred to for mill confirmation ahead of quotation.
Purchase orders name Incoloy wire through its UNS designation plus the wire document on the drawing. British and European specifications govern the drawn product, with the German document applying to 825. AWS A5.14 covers the matching consumables, and sour-service work adds NACE qualification for 825.
| Standard | Scope |
|---|---|
| BS 3075 NA15 | British specification for nickel and nickel alloy wire; NA15 is the Ni-Fe-Cr grade covering Incoloy 800, 800H and 800HT. |
| DIN 17753 | Wrought nickel and nickel alloy wire, requirements and testing; applies to Incoloy 825 (W. Nr. 2.4858) |
| EN 10095 & VdTÜV 412 and 434 | Heat-resistant steel and nickel alloy products, including wire. Applies to Incoloy 800, 800H and 800HT, which sit outside the DIN 177xx nickel alloy series because iron is the largest element in the matrix. |
| AWS A5.14 / ASME SFA-5.14 | Bare nickel alloy welding electrodes and rods. Governs the matching consumables ERNiCr-3 (UNS N06082) for the 800 series and ERNiFeCr-1 (UNS N08065) for 825. |
| NACE MR0175 / ISO 15156 | Sour-service qualification for Incoloy 825 (UNS N08825), with defined H2S, chloride, pH and temperature limits. |
The Incoloy wire range resolves into four grades. Three of them step up the 800 series for hot oxidising and carburising service, and Incoloy 825 answers reducing and oxidising acids, chlorides and pitting media.
Incoloy 800 wire resists oxidation and carburisation in hot furnace atmospheres and holds off the chloride stress corrosion cracking that retires ordinary austenitic wire in steam-side duty.
Controlled carbon and a coarse annealed grain give Incoloy 800H wire the creep and rupture strength that long furnace campaigns demand from fixture and basket lacing.
Incoloy 800HT wire adds a tightened aluminium and titanium window over 800H, lifting stress rupture performance for the hottest fixture work in the series.
Molybdenum and copper set Incoloy 825 wire against sulphuric and phosphoric acid, pitting and crevice attack, with titanium stabilising the alloy for welded assemblies.
Diameter, profile and temper together fix an Incoloy wire size, and each one is confirmed against stock before the order is priced. Drawing begins at 0.8 mm and runs upward across the four grades; anything outside the standard envelope is redrawn to order in roughly 30 days.
| Profile / Type | Size | Supply Note |
|---|---|---|
| Round Wire | From 0.8 mm upward | Spools, coils or straightened cut lengths |
| Flat Wire (Ribbon / Tape) | Rolled to ordered width and thickness | Coils or spools |

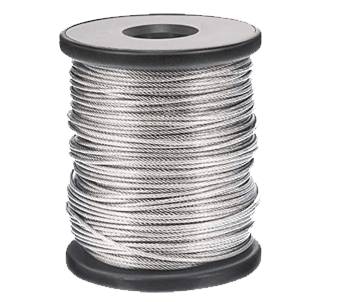

| Shaped / Profile Wire | Drawn to customer die profile | Coils or cut lengths |
| Spring Wire | From 0.8 mm upward, spring temper | Coils and spools |
Sizes hold across Incoloy 800, 800H, 800HT and 825, so grade does not narrow the diameter available.
Four drawn profiles make up the Incoloy wire range, and each one is available in all four grades. Coil, spool and straightened cut length are packing formats rather than separate products, so they sit under supply format instead of being counted twice here.
Contact Amigo Impex for the current Incoloy wire price per kg, stating grade, diameter, temper, wire type and quantity.
Request a QuotePacking an Incoloy wire order follows this format set by a reliable Incoloy Wires supplier and manufacturer. Fine diameters are shipped in boxed spools sealed against moisture, since a marked surface won't wind cleanly onto a former or feed through a torch. Coils go out strapped beneath waterproof wrap, while cut lengths are cased in lined wooden crates for sea freight. Pack tags carry the grade, heat, diameter and governing specification. Custom marking is applied to the order. Dispatch from Mumbai reaches pan-India, and export consignments are routed to the USA, the Gulf, Europe and Asia.
Chemical analysis, positive material identification and dimensional inspection close out every Incoloy wire lot before packing. Tensile results certify the delivered temper, because drawn strength climbs with every pass, and a catalogue figure would mislead. Where a purchase order names witness points, third-party inspection is arranged. The despatch file carries the EN 10204 3.1 certificate, and 3.2 certification follows on request, and we hold certifications like AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018.
60–70 tonnes held in Mumbai, with urgent requirements dispatched within one to two days.
AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018, with an MTC on every order.
Cutting, machining, threading, fabrication and testing all handled at our own Mumbai facility.
Original mill certificates plus our own test reports, so every batch can be traced back.
Non-standard sizes and specifications made to order.
Dispatched from Mumbai to every major Indian city, and exported to USA, Gulf, Europe, Asia
UNS N08800 is the equivalent of Incoloy 800 wire. The rest of the family follows the same pattern: N08810 for 800H, N08811 for 800HT and N08825 for Incoloy 825 wire.
You should order Incoloy 800 wire for hot oxidising and carburising service, and Incoloy 825 wire where sulphuric or phosphoric acid, chlorides or pitting media control the duty. Temperature picks the first; chemistry picks the second.
Incoloy 800H wire holds carbon and grain size within tighter limits for creep strength, and Incoloy 800HT wire adds a controlled aluminium and titanium window on top. Both exist for long hot service where standard 800 would slowly stretch.
Incoloy wire is supplied on spools, in coils or as straightened cut lengths, packed to protect the drawn surface in transit. Custom spool sizes and export packing are arranged on request.
Drawn into furnace lacing, springs and acid-plant assemblies, Incoloy wire serves these eight industries.
