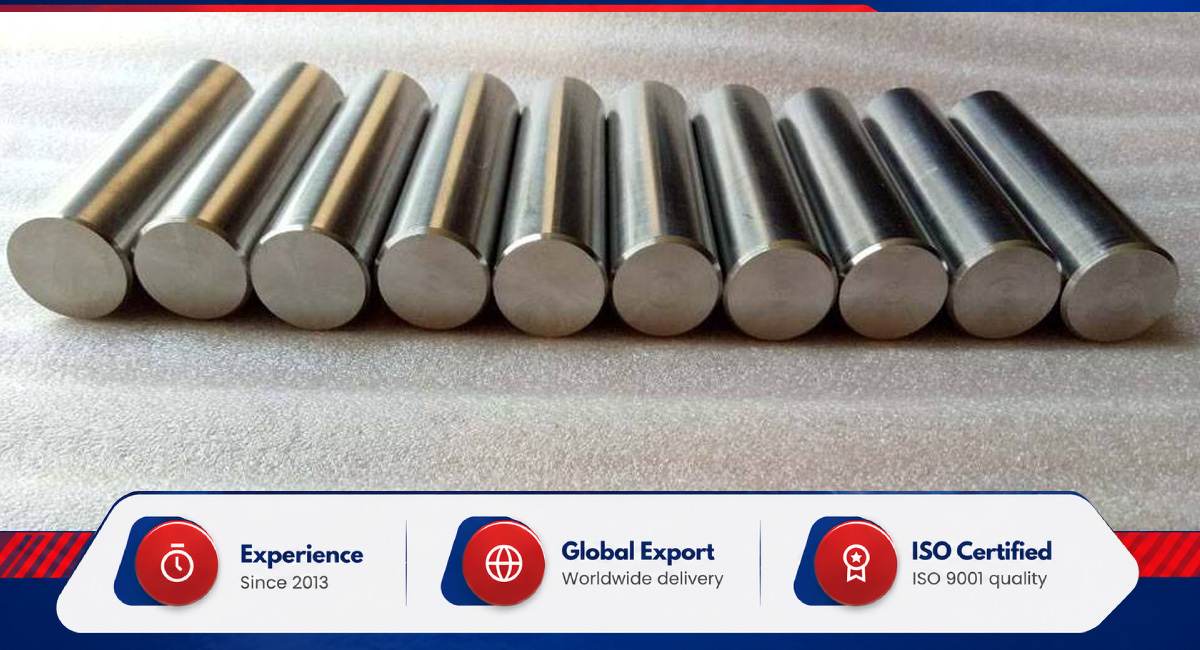

Amigo Impex has been manufacturing Stainless Steel 15-5 PH Bars & Rods in Mumbai for over a decade, establishing itself as a trusted 15-5 PH stainless steel bar supplier that stocks and exports this grade globally. We hold AS 9120B, PED and ISO 9001:2015 certifications to ensure product quality.
15-5 PH is a martensitic precipitation-hardening stainless steel designated as UNS S15500. It hardens in two stages: martensite forms as the bar cools from the 1040°C solution anneal, then a single ageing cycle precipitates copper-rich particles that raise strength further. No cold work is needed. Bar and shape products are ordered to ASTM A564 / ASME SA-564 Type XM-12; AMS 5659 serves the aerospace route and requires consumable electrode remelted material. Chromium at 14.00 to 15.50% provides corrosion resistance, and niobium stabilises the structure for welding. Condition A machines freely below 363 HB; aged H900 lifts the tensile minimum to 1310 MPa and steps through to H1150, exchanging strength for ductility, where the elongation minimum rises to 16%. Round bar spans 3 mm to 800 mm in diameter; square, hex, flat and forged profiles are cut to length in-house. Aerospace, Defence, Oil & Gas and Pumps & Valves plants machine it into fasteners, shafts, stems and gears.
Consignments ship across India and worldwide with per-kilogram pricing, with every order accompanied by a mill test certificate. As leading 15-5 PH stainless steel bar manufacturers, we maintain stock to ensure immediate dispatch and quicker delivery while handling cutting, machining, threading, fabrication, testing, and packing.
An order for Stainless Steel 15-5 PH bars and rods depends on seven parameters, including specification, profile, size, condition, finish, tolerance, and melt route, with our available production and stock ranges listed below.
ASTM A564 and its ASME adoption, SA-564, cover SS 15-5 PH round bar; AMS 5659 serves aerospace stock. Sheet documents AMS 5862 and ASTM A693 don't apply to bar orders.
| Standard | Scope |
|---|---|
| ASTM A564 / A564M | Age-hardening stainless steel bars and shapes, hot-rolled and cold-finished |
| ASME SA-564 | Boiler and Pressure Vessel Code adoption of A564 |
| AMS 5659 | Aerospace 15-5 PH bar and forging stock |
| ASTM A484 / A484M | General requirements for stainless steel bars |
Copper at 2.50 to 4.50% precipitates during ageing in 15-5 PH round bar; niobium plus tantalum at 0.15 to 0.45% binds carbon. SA-564 sets these UNS S15500 limits.
| Element | % by Weight |
|---|---|
| Carbon (C) | 0.07 max |
| Manganese (Mn) | 1.00 max |
| Phosphorus (P) | 0.040 max |
| Sulphur (S) | 0.030 max |
| Silicon (Si) | 1.00 max |
| Chromium (Cr) | 14.00 – 15.50 |
| Nickel (Ni) | 3.50 – 5.50 |
| Copper (Cu) | 2.50 – 4.50 |
| Niobium + Tantalum (Nb+Ta) | 0.15 – 0.45 |
| Iron (Fe) | Balance |
Ageing temperature sets the strength of 15-5 PH bars: each H number is the cycle temperature in °F. Below are SA-564 longitudinal minimums for bar up to 300 mm; Condition A carries only a hardness cap.
The ASTM A564 / SA-564 property minimums tabled below apply to sizes up to 300 mm. For diameters above 300 mm, mechanical properties, test location and test direction are agreed upon at the order stage and recorded on the certificate.
| Condition | Tensile Strength, min | Yield Strength (0.2%), min | Elongation, min | Hardness (Brinell) |
|---|---|---|---|---|
| Condition A (annealed) | – | – | – | 363 HB max |
| H900 | 1310 MPa (190 ksi) | 1170 MPa (170 ksi) | 10% | 388 HB min |
| H925 | 1170 MPa (170 ksi) | 1070 MPa (155 ksi) | 10% | 375 HB min |
| H1025 | 1070 MPa (155 ksi) | 1000 MPa (145 ksi) | 12% | 331 HB min |
| H1075 | 1000 MPa (145 ksi) | 860 MPa (125 ksi) | 13% | 311 HB min |
| H1100 | 965 MPa (140 ksi) | 795 MPa (115 ksi) | 14% | 302 HB min |
| H1150 | 930 MPa (135 ksi) | 725 MPa (105 ksi) | 16% | 277 HB min |
| H1150M | 795 MPa (115 ksi) | 515 MPa (75 ksi) | 18% | 255 HB min |
The UNS S15500 bars and rods equivalent grade chart simplifies cross-referencing international material standards.
| Standard System | Designation |
|---|---|
| USA (UNS) | S15500 |
| Europe (EN / W.Nr) | 1.4545 / X5CrNiCu15-5 (EN 4842) |
| France (AFNOR) | Z5CNU15‑5 |
| Japan (JIS) | SUS15‑5PH |
| China (GB) | 05Cr15Ni5Cu4Nb |
SS 15-5 PH bar stock spans the four profiles tabled here. Sections beyond these ranges are produced to order; cut lengths are prepared before dispatch.
| Profile | Dimension | Range |
|---|---|---|
| Round Bar | Diameter | 3 – 800 mm |
| Square Bar | Side | 4 – 100 mm |
| Hex Bar | Across Flats (A/F) | 2 – 100 mm |
| Flat Bar | Thickness | 2 – 150 mm |
| All Profiles | Length | 1 – 6 m, custom cut lengths |
Profile and finish together define the product type. Alongside our 15-5 PH stainless steel round bar, we stock four further variants, supplied in Condition A or age-hardened to H900 through H1150 on request.
Inland shipments of 15-5 PH Stainless Steel rods and bars are packed in bundles, while export shipments are packed in wooden crates with each piece tagged by grade, heat number, and size. From Mumbai, we deliver pan-India and export to the USA, the Gulf, Europe and Asia. Urgent orders leave stock in 1 to 2 days; made-to-order production runs close to 30 days.
Chemical analysis, hardness checks and dimensional inspection run in-house on every lot of 15-5 PH stainless steel bar. A mill test certificate records UNS S15500 conformance and the ordered condition, and we'll organise third-party inspection when contracts require it. AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certifications are held by our company.
Stainless Steel 15-5 PH Bars & Rods price ranges at ₹250–270/kg (around ~US$3.0–3.25/kg): INR within India, USD for export. Diameter, profile, condition, melt route and quantity move the rate. H900 bar prices are above Condition A, and vacuum-melt material commands more than standard melt.
Get a current price per kg for 15-5 PH round bar by listing profile, condition and quantity.
Request a Quote60–70 tonnes held in Mumbai, with urgent requirements dispatched within one to two days.
AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018, with an MTC on every order.
Cutting, machining, threading, fabrication and testing all handled at our own Mumbai facility.
Original mill certificates plus our own test reports, so every batch can be traced back.
Non-standard sizes and specifications made to order.
Dispatched from Mumbai to every major Indian city, and exported to USA, Gulf, Europe, Asia
Condition A is the solution-annealed state in which 15-5 PH bar leaves the mill, capped at 363 HB. It's meant for machining and forming; components are aged afterwards rather than run annealed under load.
H900 gives the highest strength at 1310 MPa minimum, H1025 balances strength with toughness for shafts and seals, and H1150 delivers 16% elongation. H1150M, the double-treatment condition, is the most ductile at 18% elongation with a 255 HB minimum. H925, H1075 and H1100 sit between.
Yes, though it is not the usual sequence. The standard route is to rough machine in Condition A, age to the required H condition, then take a light finish cut where tight tolerances demand it. Aged material at H900 runs 388 HB minimum and is harder on tooling than Condition A.
The 15 5 PH round bar price per kg in India falls around ₹250–270/kg (around ~US$3.0–3.25/kg) and depends on diameter, condition, melt route and quantity. Ask for a dated quotation in INR or USD.
Fasteners, shafts, stems, seals and gears machined from 15-5 PH SS bar stock serve these 8 industries.
