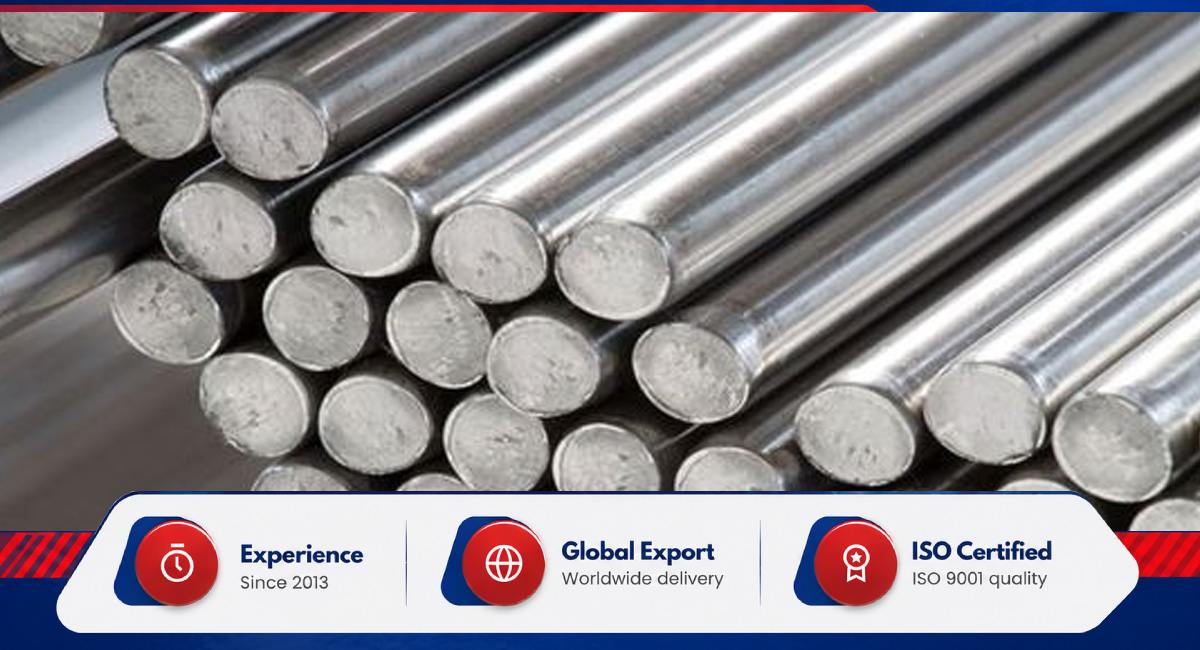

Amigo Impex manufactures and supplies Stainless Steel 422 bars and rods in Mumbai, India. We've produced, stocked and exported this grade, running cutting, machining, threading and testing at our own works.
422 stainless steel round bar is a hardenable martensitic stainless steel developed for high-temperature turbine duty, and we supply it as UNS S42200 bar to ASTM A565 Grade 616. Molybdenum, tungsten and vanadium form carbides that keep the steel strong where plain chromium grades soften. Hardened and tempered bar reaches 965 MPa tensile strength for blades and bolts under full design load. European drawings identify the same steel as 1.4935 or X20CrMoWV12-1. Aerospace orders call up the same alloy through AMS 5655, which uses a slightly wider composition window than ASTM A565 Grade 616; confirm which specification your drawing cites before ordering. Round bar spans 4 mm to 500 mm in diameter, with hex, square, flat, bright and forged profiles in 1 to 6 metres or custom-cut lengths.
Gas turbine blades, valve internals and aerospace fasteners are machined from this bar for power, oil and gas and defence programmes. As a reliable 422 stainless steel bar manufacturer and supplier, we are certified to AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018. All our products are shipped alongside mill test certificates; we supply orders across India and export, with pricing quoted per kg in INR or USD.
We supply Stainless Steel 422 bars and rods against ASTM A565 Grade 616 in grade UNS S42200. The table sets out the size envelope, supply conditions, finishes and profiles we hold.
Orders for SS 422 bars run against ASTM A565 Grade 616. The specifications below cover the same chemistry for aerospace and turbine bolting applications.
| Standard | Scope |
|---|---|
| ASTM A565 (Grade 616) | Martensitic stainless bars for high-temperature service |
| AMS 5655 | Hardened and tempered 422 bars, wire, forgings and forging stock for aerospace |
Type 422 follows the 12Cr-1Mo-V-W analysis pattern. Carbon at 0.20 to 0.25% allows the AISI 422 chemistry harden fully, while tungsten and vanadium carbides survive long tempering cycles.
| Element | Min % | Max % |
|---|---|---|
| Carbon (C) | 0.20 | 0.25 |
| Manganese (Mn) | 0.50 | 1.00 |
| Phosphorus (P) | - | 0.025 |
| Sulphur (S) | - | 0.025 |
| Silicon (Si) | - | 0.50 |
| Chromium (Cr) | 11.00 | 12.50 |
| Nickel (Ni) | 0.50 | 1.00 |
| Molybdenum (Mo) | 0.90 | 1.25 |
| Tungsten (W) | 0.90 | 1.25 |
| Vanadium (V) | 0.20 | 0.30 |
| Iron (Fe) | Balance | - |
The heat-treat condition determines which figures apply to the Grade 422 bar, so each table is labelled by that condition. Mixing values across conditions misstates a design margin.
Condition HT, austenitise 1020–1050°C, air or oil quench, temper at 620°C for a minimum of 2 hours (ASTM A565 Grade 616)
| Property | Value |
|---|---|
| Tensile Strength | 965 MPa |
| Yield Strength (0.2% Offset) | 760 MPa |
| Elongation in 2 in. | 13% |
| Reduction of Area | 30% |
| Hardness | 302-352 HB |
Condition H, austenitise 1020–1050°C, air or oil quench, temper at 675°C for a minimum of 2 hours (ASTM A565 Grade 616)
| Property | Value |
|---|---|
| Tensile Strength | 825 MPa |
| Yield Strength | 585 MPa |
| Elongation in 2 in. | 17% |
| Reduction of Area | 35% |
| Hardness | 241-285 HB |
Alloy 422 runs to 1200°F (around 650°C) under high stress and resists oxidation to 1450°F (790°C) in low-stress duty.
The designations below cover the same 12Cr-Mo-W-V family, but they are cross-references, not identical chemistries. EN 1.4935 carries a lower tungsten band than UNS S42200, so a drawing calling for 1.4935 needs the actual EN 10302 analysis confirmed before substitution. Tell us which standard your drawing cites and we will certify against it.
| Country / Standard | Designation |
|---|---|
| USA (UNS) | UNS S42200 |
| Europe (EN / W.Nr.) | 1.4935 / X20CrMoWV12-1 |
| Japan (JIS) | SUH 616 |
| France (AFNOR) | Z35CD17 (not exact but closest equivalent) |
Diameter and length decide whether an enquiry ships from ready stock. 422 stainless round bar runs from 4 mm to 500 mm in outside diameter; other profiles are listed below.
| Bar Type | Size Range |
|---|---|
| Round Bar | 4 - 500 mm outside diameter |
| Bright Bar | 4 - 100 mm outside diameter |
| Hex Bar | 18 - 57 mm across flats |
| Square Bar | 18 - 47 mm |
| Flat Bar | 1/2 in - 10 in width, 2 - 150 mm thickness |
| Length (all types) | 1 - 6 m, custom cut lengths |
5 bar types cover the usual machining routes for this grade, from round to rectangular.
Wrapped and secured against transit damage, each SS 422 bar bundle carries grade, size, specification and heat-number marking. Ready stock of 60 to 70 tonnes supports urgent dispatch within 1 to 2 days; made-to-order material follows in around 30 days. As a 422 stainless steel bar supplier, we ship consignments to the Gulf, Europe, and Asia.
Hardness and PMI testing take place in-house on Stainless Steel 422 bars before packing, alongside dimensional inspection. Third-party inspection is arranged on request. Every consignment carries a mill test certificate with chemical and mechanical results against ASTM A565 Grade 616.
The approximate F.O.B price of Stainless Steel 422 bars and rods is in the range of ₹500-1000/Kg or approximately US $5.25-10.50/Kg with an exchange rate of about ₹95.43/US dollar. Final price may be affected by the following: Diameter, Section profile, length, surface finish, melting route, certification and order quantity. Hence, please check the latest rate of SS 422 round bar per kg in INR & USD while enquiring.
Submit your detailed specifications regarding size, finish and quantity to receive an official SS 422 round bar price quotation in INR or USD.
Request a Quote60–70 tonnes held in Mumbai, with urgent requirements dispatched within one to two days.
AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018, with an MTC on every order.
Cutting, machining, threading, fabrication and testing all handled at our own Mumbai facility.
Original mill certificates plus our own test reports, so every batch can be traced back.
Non-standard sizes and specifications made to order.
Dispatched from Mumbai to every major Indian city, and exported to USA, Gulf, Europe, Asia
Stainless Steel 422 bars and rods contain 0.20 to 0.25% carbon, 11.00 to 12.50% chromium, 0.90 to 1.25% each of molybdenum and tungsten, and 0.20 to 0.30% vanadium.
1200°F (around 650°C) is the ceiling for SS 422 bars under high stress. In low-stress conditions, the grade resists oxidation up to 1450°F (790°C).
Hardened and tempered to ASTM A565 Condition HT is the standard supply condition for Stainless Steel 422 bars, giving 302–352 HBW. Condition H (tempered at 675°C minimum, 241–285 HBW) and annealed Condition A are produced against specific orders.
Black, bright polished, rough turned, No.4, matt and BA finishes are available. Stainless Steel 422 bright bars are supplied cold-drawn, polished cold-drawn, or centreless ground and polished.
Yes, every SS 422 bar order ships with a mill test certificate; third-party inspection can be added on request.
Pricing for 422 SS bar stock runs around ₹500 to ₹1,000 per kg, or roughly US $5.25 to $10.50 per kg FOB. Per kg rates in INR or USD depend on diameter, profile, finish, melting route and quantity.
Turbine, valve and fastener components machined from 422 stainless steel bars run in these eight industries.
