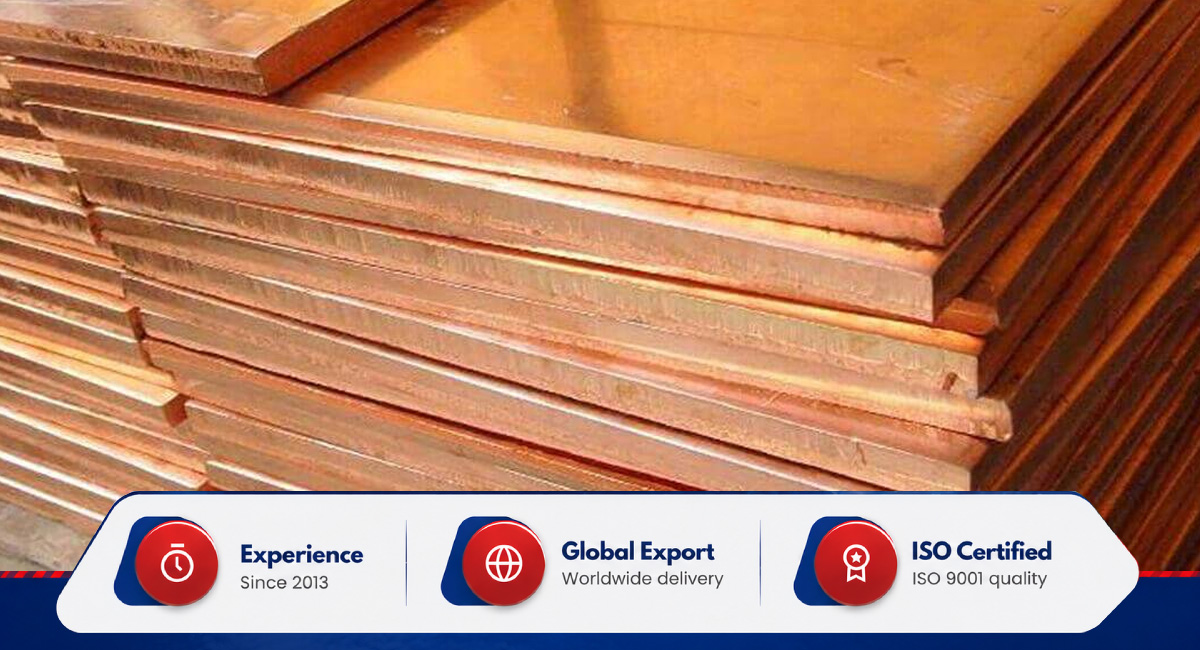

Amigo Impex is a trusted cupro-nickel sheets and plates manufacturer and supplier in Mumbai, India, operating since 2013. Cutting, machining, fabrication, testing and packing all run in-house, so material leaves the works finished to the ordered dimensions.
The range covers copper-nickel (cupronickel) flat-rolled products in two grades, UNS C70600 (90/10) and UNS C71500 (70/30), supplied against ASTM B171 / ASME SB-171 and ASTM B122. Nickel stands at 9.0 to 11.0% in the first grade and 29.0 to 33.0% in the second, with iron added for erosion resistance and copper as the balance. Immersed in seawater, the alloy builds a thin, tenacious surface film. Corrosion slows under that film, and barnacle attachment with it, keeping macrofouling rates low on permanently wetted plate.
Plates run 0.25 in to 5 in thick, and sheets come in lighter cold-rolled gauges, with hot-rolled, cold-rolled, perforated, chequered and shim forms rolled in both grades. Most of the tonnage goes into condensers, heat exchangers, hull plates, desalination units and seawater piping, alongside steady offshore and defence fabrication demand.
Ready stock in Mumbai runs at 60 to 70 tonnes at any time, priced per kilogram, with pan-India delivery and exports to the USA, the Gulf, Europe and Asia. A mill test certificate accompanies every order, and we hold AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certifications.
The table below sets the supply range for Cupro Nickel Sheets & Plates: governing standards, both stocked grades, dimensional bands, processed forms, density and the documentation issued with each dispatch.
Two ASTM specifications govern copper nickel sheets and plates: one written for pressure-retaining plate in condensers and vessels, the other for general flat-rolled product. A military specification completes the set.
| Standard | Scope |
|---|---|
| ASTM B171 / ASME SB-171 | Copper-alloy plate and sheet for pressure vessels, condensers and heat exchangers |
| ASTM B122 | Copper-nickel-tin alloy, copper-nickel-zinc alloy (nickel silver), and copper-nickel alloy plate, sheet, strip and rolled bar |
| MIL-C-15726F, Am. 1 | US military specification met by C70600 and C71500 |
Two grades make up the cupro nickel sheet and plate range. Cupro Nickel 90/10 covers the bulk of marine plate work at the lower nickel content, while Cupro Nickel 70/30 takes the duties that 90/10 can't.
Cupro Nickel 90/10 sheets/plates hold 9.0 to 11.0% nickel and 1.0 to 1.8% iron, balance copper. Minimum tensile strength is 40 ksi (275 MPa) in the as-hot-rolled (M20) temper; cold-rolled tempers run higher, from 51 ksi (350 MPa) at quarter hard up to 78 ksi (540 MPa) at spring temper (ASTM B122).
Nickel climbs to 29.0 to 33.0% in Cupro Nickel 70/30 sheets/plates, lifting minimum tensile strength to 50 ksi (345 MPa) up to 2.5 in thick and 45 ksi (310 MPa) over 2.5 in to 5 in, for higher-velocity seawater duty.
As a Cu-Ni sheet and plate stockist, we hold the dimensional bands below and arrange custom cutting on request. Plate is a wrought flat product over 0.188 in [5.00 mm] thick and over 12 in [300 mm] wide, in lengths. Sheet is a rolled flat product up to and including 0.188 in [5.00 mm] thick and over 24 in [600 mm] wide, in flat lengths or coils (ASTM B171).
| Dimension | Range |
|---|---|
| Plate Thickness | 0.25 in to 5 in |
| Sheet Thickness | Lighter cold-rolled gauges; 0.125 in commonly stocked |
| Shim Sheet Thickness | 0.8 mm to 2 mm |
| Width | 36 in to 60 in |
| Length | Up to 240 in |
| Common Sheet Size | Up to 36 in x 96 in |

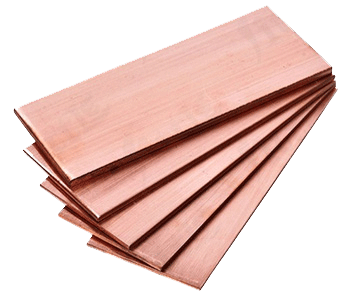

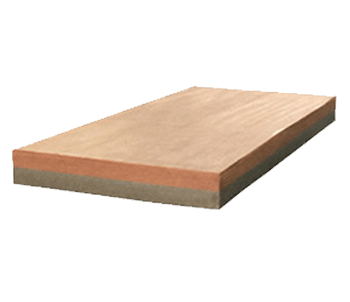

Four processed types make up the CuNi sheet and plate range, each rolled in both the 90/10 and 70/30 grades.
Cupro nickel sheets and plates are packed in boxes, crates or bundles, and export consignments carry the packing method specified in the order. Deliveries run pan-India from Mumbai; export shipments serve the USA, the Gulf, Europe and Asia. Urgent stock moves in 1 to 2 days, while made-to-order material takes around 30 days.
Contact Amigo Impex for the current cupro nickel sheet and plate price against a confirmed grade, thickness, form and quantity.
Request a QuoteTesting on copper nickel plates and sheets runs in-house before packing. Each order carries a mill test certificate pairing original mill figures with our own test results, and third-party inspection is supported whenever the purchase order requires it. Amigo Impex holds AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certifications.
60–70 tonnes held in Mumbai, with urgent requirements dispatched within one to two days.
AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018, with an MTC on every order.
Cutting, machining, threading, fabrication and testing all handled at our own Mumbai facility.
Original mill certificates plus our own test reports, so every batch can be traced back.
Non-standard sizes and specifications made to order.
Dispatched from Mumbai to every major Indian city, and exported to USA, Gulf, Europe, Asia
Cupro nickel sheets and plates comply with ASTM B171 / ASME SB-171, the plate and sheet specification for pressure vessels, condensers and heat exchangers, and with ASTM B122. Both grades also meet MIL-C-15726F, Am. 1.
Nickel content and strength separate the two grades. Cupro Nickel 90/10 carries 9.0 to 11.0% nickel at 40 ksi (275 MPa) minimum tensile. Cupro Nickel 70/30 carries 29.0 to 33.0% nickel at 50 ksi (345 MPa) minimum up to 2.5 in thick, dropping to 45 ksi (310 MPa) over 2.5 in to 5 in (ASTM B171).
Cupro nickel sheets and plates weld readily by gas shielded arc, spot, seam and butt methods, and both grades accept soldering and brazing. Machinability sits at a rating of 20.
Cupro nickel plates are available from 0.25 in to 5 in thick, in widths of 36 in to 60 in and lengths up to 240 in, with custom cutting on request.
Cupro nickel plates are used for seawater service because the alloy's protective surface film resists both corrosion and barnacle growth, holding macrofouling rates low on hull plate, condensers and piping.
Thickness draws the line between a cupro nickel plate and a cupro nickel sheet. For copper alloys the divide sits at 0.188 in (5 mm) under ASTM B248, not at the 6 mm figure used for steel. Anything above that is plate; below it is sheet.
We export cupro nickel sheets and plates from Mumbai to the USA, the Gulf, Europe and Asia, with a mill test certificate on every consignment and payment accepted in advance, on credit or by LC.
Seawater contact, desalination duty and heat-transfer service place copper nickel sheets and plates in 8 industries:
