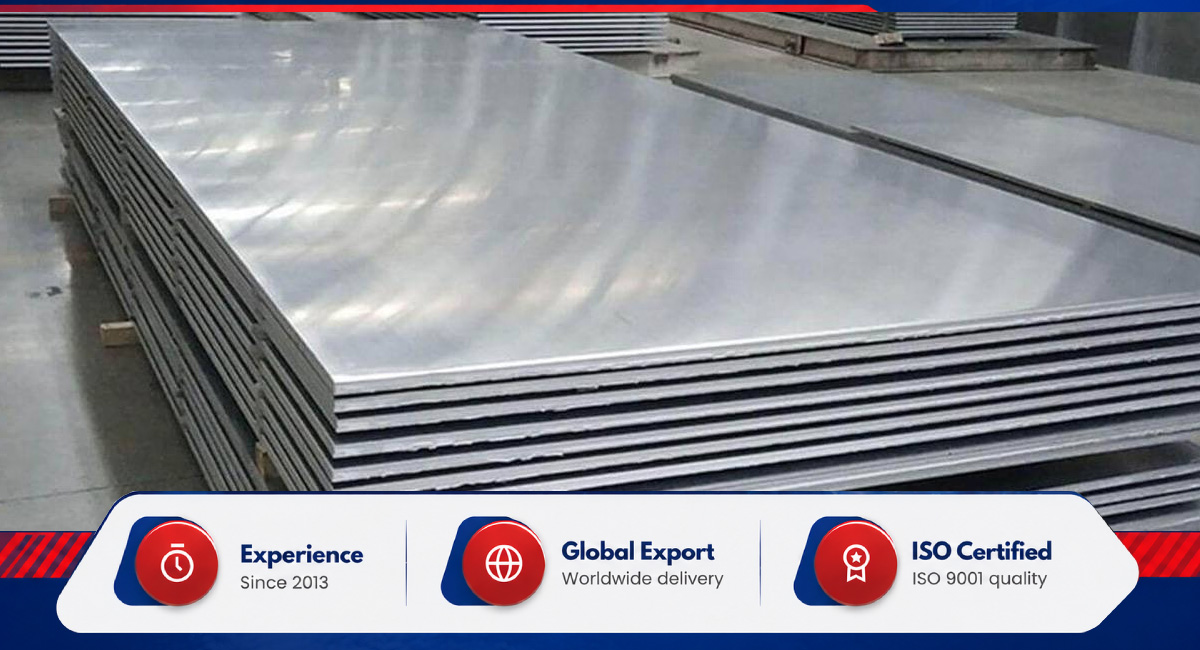

Amigo Impex has worked from Mumbai, India, as a duplex steel sheets and plates manufacturer, supplier, stockist and exporter since 2013, running cutting, machining, fabrication, testing and packing on its own floor. Two grades make up the flat-rolled duplex range: Duplex 2205 (UNS S31803 / S32205), which takes most of the chloride-service demand, and lean duplex S32304 for milder duty at a lower alloy cost.
A duplex stainless steel plate divides its microstructure between ferrite and austenite in near-equal shares. Chromium forms the passive oxide film, nitrogen stabilises the austenite phase and lifts pitting resistance, molybdenum in the 2205 chemistry improves resistance to pitting and crevice attack, and the balanced ferrite-austenite structure resists chloride stress corrosion cracking in hot brines and process liquor. SA-240 sets 620 MPa (90 ksi) minimum tensile, 450 MPa (65 ksi) minimum yield and 25% minimum elongation for S31803. Heats dual-certified to S32205 meets a higher 655 MPa tensile minimum. Hot-rolled plate and cold-rolled sheet sit in stock across 1000 mm, 1219 mm and 1500 mm widths.
Chemical plants, pressure vessels, scrubber columns and chloride-bearing process water lines draw most of the tonnage, with brackish and intermittent seawater duty covered at ambient temperature and continuous warm seawater service referred to the 25Cr super duplex range. Dispatch covers pan-India from Mumbai; exports move to the USA, the Gulf, Europe and Asia, and urgent requirements pull from 60 to 70 tonnes of ready stock. Orders are priced per kilogram, and every heat ships with a mill test certificate. We also hold AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certifications.
An enquiry for duplex steel sheets and plates is checked against the parameters below: governing specification, stocked grades, rolling condition, finish, dimensional cover, testing route and certification.
Only flat-product documents appear against duplex steel sheets and plates; pipe, bar and fitting specifications stay off this page. One standard governs supply, and the rest carry general requirements, testing methods and regional acceptance.
| Standard | Scope |
|---|---|
| ASTM A240 / ASME SA-240 | Governing specification for chromium and chromium-nickel stainless plate, sheet and strip |
| ASTM A480 | General requirements for flat-rolled stainless plate, sheet and strip |
| ASTM A923 | Test methods for detrimental intermetallic phase in duplex stainless steels |
| EN 10088-2 | European duplex sheet and plate for general corrosion-resisting service |
| EN 10028-7 | European stainless flat products for pressure purposes |
| JIS G 4304 / G 4305 | Japanese hot rolled and cold rolled stainless plate and sheet |
| GB/T 4237 | Chinese hot rolled stainless plate and sheet |
| NACE MR0175 / ISO 15156 | Sour service qualification where the purchase order specifies it |
Two duplex stainless steel grades are held in sheet and plate form, split by nickel and molybdenum loading: Duplex S31803 and lean duplex S32304. The 25Cr family sits on the super duplex steel sheets and plates page, and neither grade below suits continuous service above 300°C.
Duplex S31803 sheet and plate answers most drawings, with heats commonly dual-certified to S32205. SA-240 asks for 620 MPa (90 ksi) tensile, 450 MPa (65 ksi) yield and 25% elongation as minima for S31803, and 655 MPa (95 ksi) tensile against the same yield and elongation once a heat is dual-certified to S32205.
Lean duplex S32304 cuts molybdenum back to 0.05 to 0.60% against 3.00 to 3.50% in 2205, and trims nickel to 3.00 to 5.50%, so 2304 sheet prices below 2205 while covering moderate chloride environments.
For duplex steel plates, dimensional cover splits between ex-stock bands and cut-to-size work. A size outside the table isn't refused; the in-house line cuts it against order before dispatch.
| Dimension | Range |
|---|---|
| Standard Plate Size | 48 in x 120 in (1219 mm x 3048 mm) |
| Stocked Widths | 1000 mm, 1219 mm, 1500 mm |
| Cold Rolled Sheet Gauges | 1.5 mm, 2 mm and 4 mm commonly stocked |
| Plate Thickness | 10 mm commonly stocked; heavier plate on enquiry |
| Length | Up to 3048 mm standard; custom lengths cut to size |
| Non-Standard Sizes | Cut to the ordered dimension before dispatch |
Three processed variants complete the duplex steel sheet and plate catalogue, and certification doesn't change across the list.
Contact Amigo Impex for the current per-kilogram price of duplex steel sheets and plates, stating grade, thickness, width, finish and quantity.
Request a QuoteDuplex steel plates are left on strapped pallets or in seaworthy wooden cases, with interleaving between finished sheet surfaces and protection along cut edges. Grade, heat number, size and specification are marked on every bundle. Domestic dispatch runs pan-India from Mumbai; export consignments travel to the USA, the Gulf, Europe and Asia with the document set prepared alongside. Ready stock clears in 1 to 2 days, and made-to-order material needs around 30 days.
Positive material identification, chemical analysis and dimensional inspection close out every duplex plate lot before packing. When an order names ASTM A923, intermetallic phase testing runs on the same heat, and third-party inspection is supported at release. Certification issues to EN 10204 3.1, with 3.2 witness documents arranged on request, and our company holds certifications like AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018.
60–70 tonnes held in Mumbai, with urgent requirements dispatched within one to two days.
AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018, with an MTC on every order.
Cutting, machining, threading, fabrication and testing all handled at our own Mumbai facility.
Original mill certificates plus our own test reports, so every batch can be traced back.
Non-standard sizes and specifications made to order.
Dispatched from Mumbai to every major Indian city, and exported to USA, Gulf, Europe, Asia
ASTM A240 / ASME SA-240 covers duplex steel sheets and plates, with ASTM A480 supplying the general requirements for flat-rolled delivery.
Both certify to the same specification yet leave the mill by different routes: sheet is the thinner cold rolled gauge finished 2B or polished, plate the heavier hot rolled product.
Duplex 2205 (UNS S31803 / S32205) and lean duplex S32304 are stocked in sheet and plate form; the 25Cr super duplex grades run as a separate range.
A 450 MPa minimum yield against 170 MPa for 316L lets duplex steel plate carry the same load in a thinner section, and its dual-phase structure resists the chloride stress corrosion cracking that limits austenitic plate.
Duplex steel plates weld readily with good workability and impact toughness; controlled heat input keeps the ferrite-austenite balance in the joint, and lower thermal expansion than austenitic stainless holds distortion down.
Testing to ASTM A923 detects detrimental intermetallic phases in duplex steel plates and runs on request, with the result recorded against the heat on the certificate.
Custom sizes are cut on the in-house line before dispatch, while standard sizes go out ex-stock from Mumbai.
Eight industries specify duplex stainless steel plate where chlorides, pressure and strength requirements meet.
