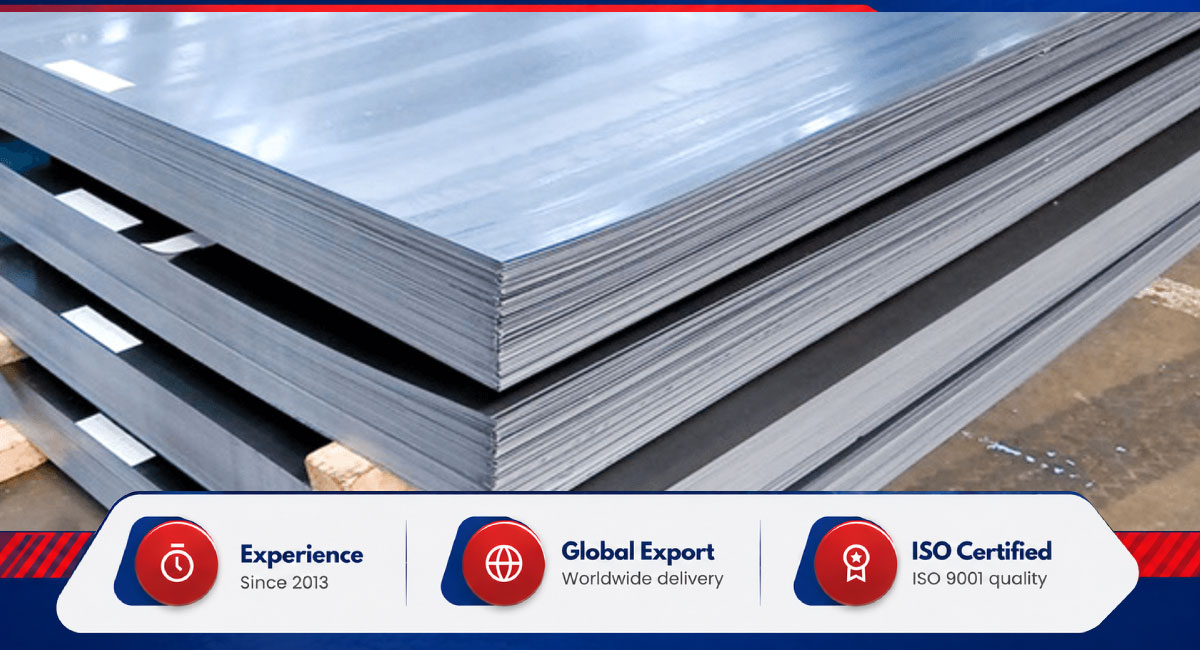

Amigo Impex is a Monel sheets and plates manufacturer, supplier, stockist and exporter based in Mumbai, India, trading since 2013, with cutting, machining, fabrication, testing and packing handled in-house. Monel sheet and plate is flat-rolled nickel-copper alloy. Monel 400 (UNS N04400) is certified to ASTM B127 / ASME SB-127; Monel K500 (UNS N05500) flat product is supplied to QQ-N-286, since ASTM publishes no plate or sheet specification for that grade. ASTM B865 covers K500 as bar, rod, wire and forgings only.
Monel 400 holds 63% minimum nickel (plus cobalt) against 28 to 34% copper. Monel K500 holds the same 63% minimum nickel against 27 to 33% copper, with 2.30 to 3.15% aluminium and 0.35 to 0.85% titanium added so the grade can be age-hardened. That balance keeps the metal sound in seawater, brine, hydrofluoric acid and caustic streams, with Monel 400 serving from sub-zero duty up to 538°C.
Cold-rolled sheet runs 0.46 mm to 6.35 mm and hot-rolled plate from 4.76 mm to 100 mm, the ranges ASTM B127 sets for the two forms; thinner gauges, from 0.13 mm, are supplied as cold-rolled strip and shim. Sheet is supplied in widths up to 2000 mm and lengths up to 6000 mm, and plate in widths up to 2500 mm and lengths up to 8000 mm.
Marine yards, chemical processors and oil and gas fabricators take most consignments, while power, defence and aerospace programmes account for the rest. Dispatch covers pan-India from Mumbai, and export shipments reach the USA, the Gulf, Europe and Asia. Around 60 to 70 tonnes of ready stock stand behind urgent orders, and every dispatch carries a mill test certificate under AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certifications.
The below table explains Monel plate specification enquiry before quotation, fixing the standard, stocked grades, thickness split, dimensional cover, temper, cutting scope and paperwork.
Only form-specific documents appear below; pipe, tube and bar standards don't belong on a flat product page. ASTM B127 cover supply, with aerospace and military callouts alongside it.
| Standard | Scope |
|---|---|
| ASTM B127 / ASME SB-127 | Nickel-copper alloy (UNS N04400) plate, sheet and strip |
| AMS 4544 | Monel 400 sheet and plate for aerospace applications |
| QQ-N-281 | Military specification for Monel 400, sheet and plate portion |
| QQ-N-286 | Military specification for Monel K500, sheet and plate portion |
| DIN 17750 | Nickel-copper sheet, plate and strip, W.Nr. 2.4360 |
| BS 3072 NA13 | British standard for nickel-copper sheet and plate |
The stocked flat-rolled range holds two grades, both certified against the documents listed above. Drawings citing Alloy 400, W.Nr. 2.4360 or NA13 point to the first, and QQ-N-286 material points to the second. Copper-rich 90/10 and 70/30 chemistries belong with cupro nickel sheets and plates instead.
Monel 400 sheet and plate is the grade ASTM B127 itself covers; products are supplied as annealed or as-rolled, and strength rises only through cold working, never heat treatment.
Aluminium and titanium additions let Monel K500 plate age-harden to higher strength and hardness while matching the corrosion behaviour of the standard grade.
ASTM B127 sets the boundary at 3/16 in (4.76 mm): hot-rolled material of that thickness and above is plate, while cold-rolled material from 0.46 mm to 6.35 mm is sheet, so the two ranges overlap between 4.76 mm and 6.35 mm and the rolling route decides which form you receive. Sizes that don't appear below are cut to order.
| Dimension | Monel Sheet | Monel Plate |
|---|---|---|
| Thickness | 0.46 mm to 6.35 mm (strip and shim from 0.13 mm) | 4.76 mm to 100 mm |
| Width | 1000 mm to 2000 mm; 1000, 1220, 1250, 1500 and 2000 mm standard | 1000 mm to 2500 mm |
| Length | 2000 mm to 6000 mm; 2000, 2440, 3000 and 6000 mm standard | 2000 mm to 8000 mm |
| Supply | Standard sizes ex-stock | Custom profiles water jet cut |
4 variants of Monel plates ship against the same certification, each supplied to the ordered width, length and edge condition:
Contact Amigo Impex, one of the most reliable Monel plate suppliers, for the current price of Monel sheets and plates per kilogram, stating grade, thickness, size and quantity.
Request a QuoteMonel plates travel on strapped pallets or in seaworthy wooden cases, with interleaving between sheets so finished surfaces don't pick up transit marks. Bundle markings identify grade, heat number, size and specification. Every consignment includes a mill test certificate, an invoice copy and a packing list, and dispatch runs pan-India from Mumbai with exports to the USA, the Gulf, Europe and Asia. Stock items leave within 1 to 2 days; made-to-order supply takes around 30 days.
Testing of Monel sheet and plate finishes in-house before packing: chemical analysis, dimensional inspection and positive material identification are recorded against each heat. Certificates follow EN 10204 3.1, combining the original mill record with our own results, and 3.2 documentation with third-party witness comes on request. Our company holds AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certifications.
60–70 tonnes held in Mumbai, with urgent requirements dispatched within one to two days.
AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018, with an MTC on every order.
Cutting, machining, threading, fabrication and testing all handled at our own Mumbai facility.
Original mill certificates plus our own test reports, so every batch can be traced back.
Non-standard sizes and specifications made to order.
Dispatched from Mumbai to every major Indian city, and exported to USA, Gulf, Europe, Asia
ASTM B127 and its ASME equivalent SB-127, cover Monel sheets and plates in nickel-copper alloy UNS N04400, and the certificate states the specification on every order.
Monel sheet is stocked from 0.46 mm to 6.35 mm and Monel plate from 4.76 mm to 100 mm, the split ASTM B127 sets at 3/16 in. Sheet is supplied up to 2000 mm wide and 6000 mm long, and plate up to 2500 mm wide and 8000 mm long, with strip and shim available from 0.13 mm.
Cutting to size runs on a water jet line, with edging, deburring and grinding completed before packing, so material arrives ready to fabricate.
Welding Monel 400 plate runs on ERNiCu-7 filler wire or MONEL 190 covered electrodes; matching filler chemistry carries the parent corrosion resistance across the joint.
Both grades are held as sheet and plate. Monel 400 takes the volume, while Monel K500 serves orders needing age-hardened strength.
A mill test certificate to EN 10204 3.1 travels with each lot of Monel sheets and plates; 3.2 certification with witness inspection is available on request.
Minimum order quantity is agreed per enquiry and depends on grade, thickness and cut size; single cut pieces and full plates are both supplied.
Salt water, acid and alkali duty carries Monel sheet and plate into eight industries:
