Amigo Impex is a Mumbai-based manufacturer, supplier, stockist and exporter of Incoloy 800HT sheets and plates, established in 2013, supplying PAN India and shipping to the USA, the Gulf, Europe and Asia.
Incoloy 800HT (UNS N08811) is a nickel-iron-chromium alloy produced in flat form to ASTM B409 and ASME SB-409. The grade carries 30.0-35.0% nickel and 19.0-23.0% chromium on an iron base of 39.5% minimum. Within the alloy 800 family, the HT variant is defined by three tighter controls, not by new alloying elements: carbon in a 0.06-0.10% window, combined aluminium plus titanium held to 0.85-1.20%, and a final anneal at 2100 °F (1149 °C) minimum against 2050 °F for 800H. Both 800H and 800HT must also meet an average grain size of ASTM No. 5 or coarser. The coarse grain, not the chemistry alone, is what carries long-term creep and stress-rupture life at furnace and reformer temperatures. The coarse grain, not the chemistry alone, is what carries long-term creep and stress-rupture life at furnace and reformer temperatures. Annealed plate meets 450 MPa minimum tensile strength, 170 MPa minimum yield strength and 30% elongation. Demand for this grade comes mainly from furnace internals, reformer components, heat-exchanger shells and pressure-vessel work.

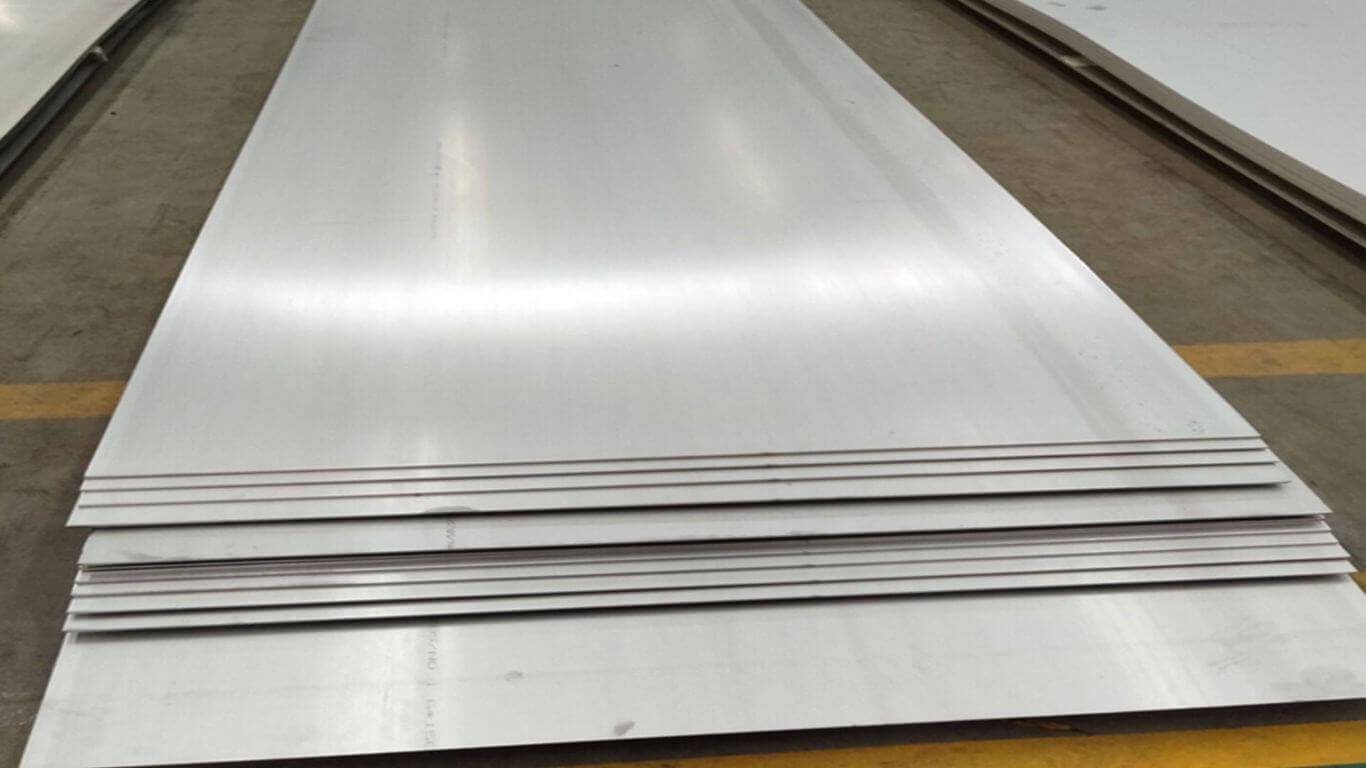

We stock 800HT sheet from 2.92 mm (0.115 in.) (the minimum thickness ASTM B409 permits for UNS N08811) up to 6.4 mm, and plate from 4.76 mm upward, in widths up to 2,500 mm and lengths up to 6,000 mm. We are certified to AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018, and each order we supply is provided with mill test certificates.
Amigo Impex supplies Alloy 800HT sheets and plates to ASTM B409 / ASME SB-409 in hot-rolled and cold-rolled condition. The table below consolidates thickness, width, length, standard sizes, finishes and certification in one place.
ASTM B409 covers nickel-iron-chromium alloy plate, sheet and strip, and ASME SB-409 adopts the same requirements for boiler and pressure vessel code construction.
| Standard | Scope |
|---|---|
| ASTM B409 | Standard Specification for Nickel-Iron-Chromium Alloy Plate, Sheet, and Strip |
| ASME SB-409 | ASME adoption of ASTM B409 for boiler and pressure vessel code work |
Incoloy 800HT (UNS N08811) derives high-temperature creep strength above 600°C from controlled carbon (0.06-0.10%) and combined aluminium-titanium (0.85-1.20%). The ASTM B409 composition limits follow.
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.06 - 0.10 |
| Manganese (Mn) | 1.50 max |
| Sulphur (S) | 0.015 max |
| Silicon (Si) | 1.00 max |
| Copper (Cu) | 0.75 max |
| Nickel (Ni) | 30.0 - 35.0 |
| Chromium (Cr) | 19.0 - 23.0 |
| Iron (Fe) | 39.5 min |
| Aluminium (Al) | 0.15 - 0.60 |
| Titanium (Ti) | 0.15 - 0.60 |
| Aluminium + Titanium (Al+Ti) | 0.85 - 1.20 |
Annealed minimums govern the design thickness for Alloy 800HT plate. Room-temperature strength is moderate; the grade's value is not tensile capacity but the creep and stress-rupture life retained at sustained operating temperature.
| Property | Value (Metric) | Value (Imperial) |
|---|---|---|
| Tensile Strength (min) | 450 MPa | 65 ksi |
| Yield Strength, 0.2% Offset (min) | 170 MPa | 25 ksi |
| Elongation in 2 in. (min) | 30% | 30% |
Request a quote for Incoloy 800HT plates in the required thickness and finish.
Request a QuoteCross-border orders name Incoloy 800HT differently from one country to the next. The table matches UNS N08811 with its European, British and Russian designations, so there is no ambiguity when a drawing cites a regional standard.
| Standard System | Designation |
|---|---|
| USA (UNS) | N08811 |
| Europe (EN Steel Name) | X8NiCrAlTi32-21 |
| Europe (W.Nr.) | 1.4959 |
| Russia (GOST) | ХН32Т (ЭП670) |

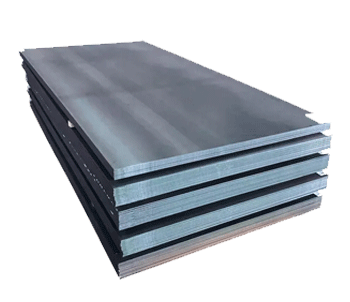

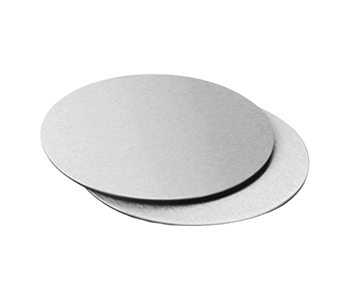

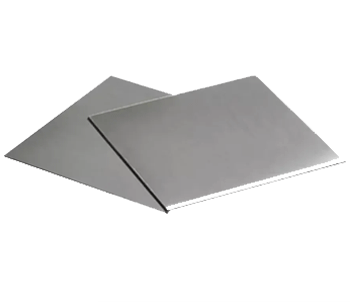

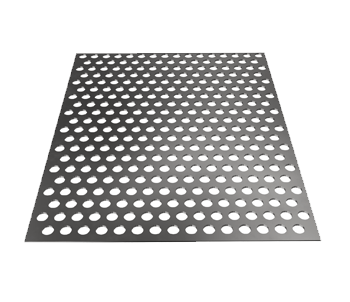

Our Incoloy 800HT flat range covers six stocked types, each sheared or cut to order in-house.
We pack Incoloy 800HT sheets and plates in wooden crates, boxes or pallets with edge protection; polished sheets travel under PVC film to protect the finish. Export consignments clear on FOB, CIF or CFR terms, with documentation handled jointly with our CHA. Standard orders dispatch in 3-5 days; urgent orders are shipped within 1-2 days.
Amigo Impex holds AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018 certifications and runs testing in-house alongside cutting, machining, threading and fabrication. Every Alloy 800HT consignment carries a Mill Test Certificate as per EN 10204 3.1 / 3.2, and third-party inspection or independent laboratory reports are arranged on request.
Alloy 800HT sheet and plate prices range from ₹1,100-₹1,300 per kg (US$11.53-13.63 per kg). The rate does not stay fixed: nickel input costs, thickness, sheet or plate form, surface finish, rolled condition, order quantity, cutting work and certification level (3.1 or 3.2) all shift the final figure. Amigo Impex confirms the current rate against grade, size and quantity at the time of enquiry.
Contact Amigo Impex for the latest Incoloy 800HT sheets and plates price based on your required grade, dimensions, thickness, quantity and certification.
Request a Quote60–70 tonnes held in Mumbai, with urgent requirements dispatched within one to two days.
AS 9120B, PED, ISO 9001:2015 and ISO 45001:2018, with an MTC on every order.
Cutting, machining, threading, fabrication and testing all handled at our own Mumbai facility.
Original mill certificates plus our own test reports, so every batch can be traced back.
Non-standard sizes and specifications made to order.
Dispatched from Mumbai to every major Indian city, and exported to USA, Gulf, Europe, Asia
ASTM B409, the Standard Specification for Nickel-Iron-Chromium Alloy Plate, Sheet, and Strip, covers Incoloy 800HT sheets and plates, together with its ASME adoption SB-409 for code construction.
UNS N08811 applies to Incoloy 800HT plate. The matching European identifiers are W.Nr. 1.4959 and steel name X8NiCrAlTi32-21.
Incoloy 800HT plate holds combined aluminium plus titanium to 0.85-1.20%, a restriction that 800H doesn't carry. Both grades have different carbon content: N08810 (800H) is 0.05-0.10% C; N08811 (800HT) is 0.06-0.10% C, so the tighter Al+Ti control is what gives 800HT plate its more consistent creep and stress-rupture performance in high-temperature fabrication.
Yes, Incoloy 800HT plates can be sheared and cut to custom sizes in-house, and the cut material does not lose its original heat-number traceability.
Every consignment includes a mill test certificate to EN 10204 3.1 or 3.2, and third-party inspection reports are available on request.
Sheets run from 2.92 mm to 6.4 mm and plates from 4.76 mm and above in thickness. Widths reach 2,500 mm, lengths reach 6,000 mm, and non-standard lengths are produced on request.
Alloy 800HT sheets and plates serve the following 8 industries
